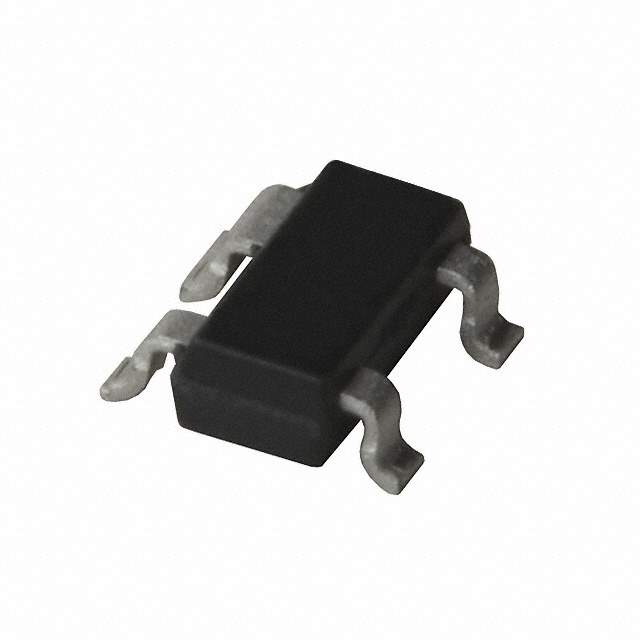

MSA-2111-TR1 Real Image
Same model may have multiple batches, images only for reference.

MSA-2111-TR1

Part No MSA-2111-TR1
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 40MA SOT-143
Datasheet
MSA-2111-TR1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 500MHz
P1dB 10dBm (10mW)
Gain 16dB to 17.5dB
Noise Figure 3.3dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 2.9 V to 4.3 V
Operating Supply Current 40mA
Test Frequency 900MHz
Case / Package SOT-143-4
Win Source Part Number 111633-MSA-2111-TR1
Ultra Librarian 3D Model Ultra Librarian MSA-2111-TR1 CAD Model

Description

The Broadcom Limited 111633-MSA-2111-TR1 is an obsolete (EOL) RF amplifier designed for use in ISM, PCS, WLL, and 802.16/WiMax RF/IF and RFID applications.

  • Frequency Range: 0Hz to 500MHz
  • Gain: 16dB to 17.5dB
  • Noise Figure: 3.3dB
  • P1dB: 10dBm (10mW)
  • Operating Supply Voltage: 2.9V to 4.3V
  • Operating Supply Current: 40mA
  • Package: SOT-143-4
  • Supply: reel
