Same model may have multiple batches, images only for reference.

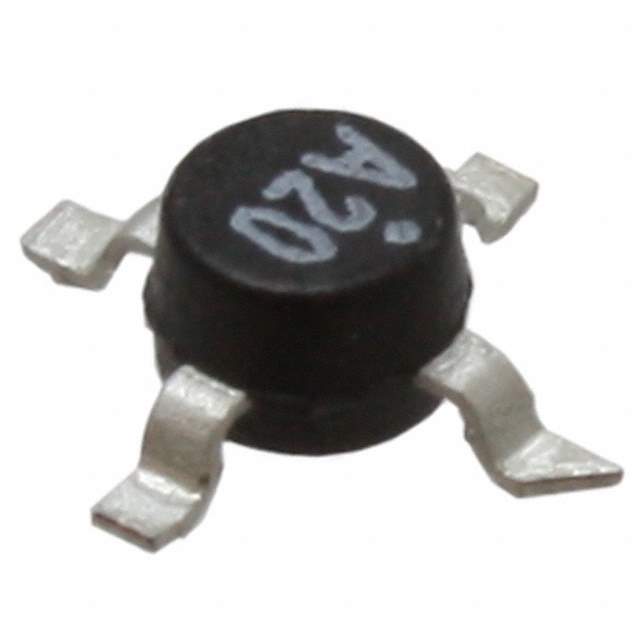

MSA-2086-BLKG Real Image
Same model may have multiple batches, images only for reference.

MSA-2086-BLKG

Part No MSA-2086-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description AMP MMIC SI BIPOLAR 86-SMD PLAST
Datasheet
MSA-2086-BLKG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Obsolete(EOL)
Frequency 0Hz to 1GHz
P1dB 9dBm (7.9mW)
Gain 15dB to 16.6dB
Noise Figure 3.7dB
RF Type ISM
Supply Voltage - Operating 4.5 V to 6.3 V
Operating Supply Current 20mA to 40mA
Test Frequency 1GHz
Case / Package 85 mil microstipline
Win Source Part Number 024373-MSA-2086-BLKG
Ultra Librarian 3D Model Ultra Librarian MSA-2086-BLKG CAD Model

Description

The MSA-2086-BLKG is an RF amplifier IC manufactured by Broadcom Limited.

  • Applications: wireless communication, radar systems, and satellite communication
  • Frequency Range: 0Hz to 1GHz
  • Gain: 15dB to 16.6dB
  • Status: obsolete (EOL)
  • Package: 85 mil microstipline
  • Operating Voltage Range: 4.5V to 6.3V
  • Operating Current Range: 20mA to 40mA
