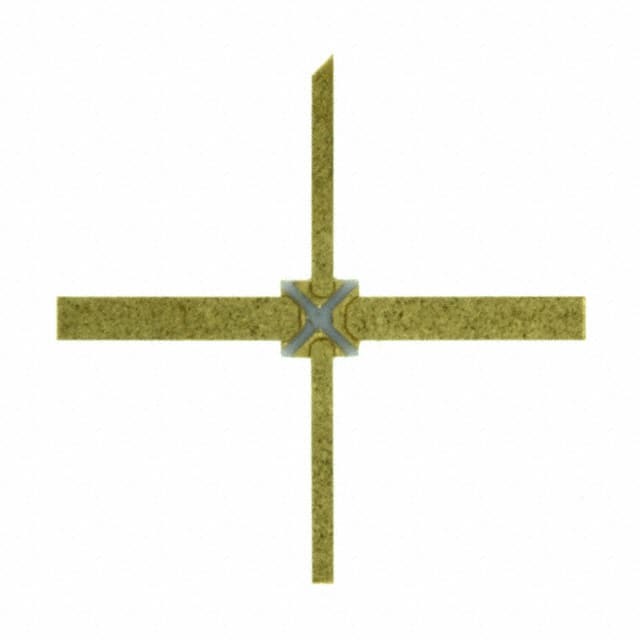

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Broadcom Limited
Package Bulk
Product Status Obsolete
Frequency 0Hz ~ 4GHz
P1dB 2dBm
Gain 19dB ~ 20.5dB
Noise Figure 2.8dB ~ 4dB
Voltage - Supply 3.1V ~ 3.9V
Current - Supply 50mA
Test Frequency 500MHz
Mounting Type Surface Mount
Package / Case 4-SMD (70 mil)
Supplier Device Package 70 mil Package
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 928148-MSA-0670
Ultra Librarian 3D Model Ultra Librarian MSA-0670 CAD Model

Description

The 928148-MSA-0670 is an RF amplifier that falls under the category of RF and Wireless products.

  • Category: RF and Wireless
  • Frequency Range: 0Hz to 4GHz
  • Test Frequency: 500MHz
  • Gain: 19dB to 20.5dB
  • Noise Figure: 2.8dB to 4dB
  • Current Supply: 50mA
  • Voltage Supply: 3.1V to 3.9V
  • Package: 4-SMD (70 mil)
  • Product Status: Obsolete
