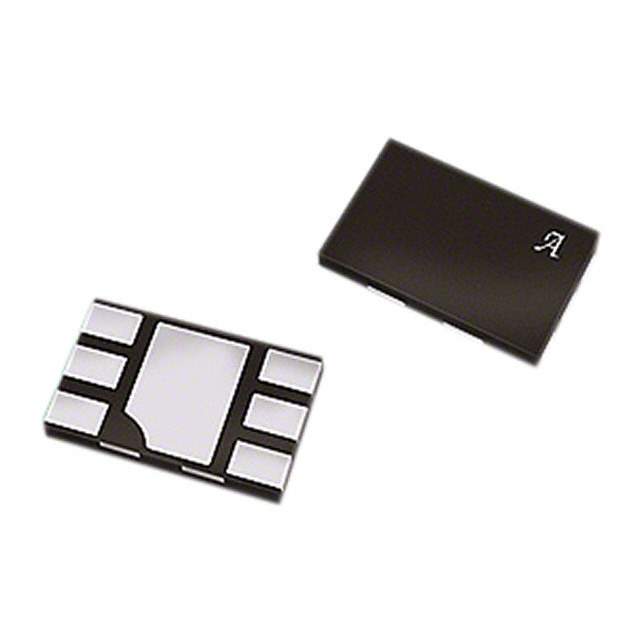

MGA-645T6-BLKG Real Image
Same model may have multiple batches, images only for reference.

MGA-645T6-BLKG

Part No MGA-645T6-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP WIMAX 1.5GHZ-3GHZ 6UTSLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Strip
Part Status Obsolete (End Of Life)
Frequency 1.5GHz ~ 3GHz
P1dB -5dBm
Gain 15dB
Noise Figure 1.1dB
RF Type WiMAX / WiBro
Supply Voltage (V) 4V
Current - Supply 13mA
Test Frequency 2.4GHz
Manufacturer Package 6-XFDFN Exposed Pad
Supplier Device Package 6-UTSLP (2x1.3)
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809134-MGA-645T6-BLKG
Ultra Librarian 3D Model Ultra Librarian MGA-645T6-BLKG CAD Model

Description

The Broadcom Limited 809134-MGA-645T6-BLKG is a WiMAX/WiBro RF amplifier with a gain of 15dB and a noise figure of 1.1dB.

  • Test Frequency: 2.4GHz
  • Frequency Range: 1.5GHz to 3GHz
  • Current Supply: 13mA
  • P1dB: -5dBm
  • Supply Voltage: 4V
