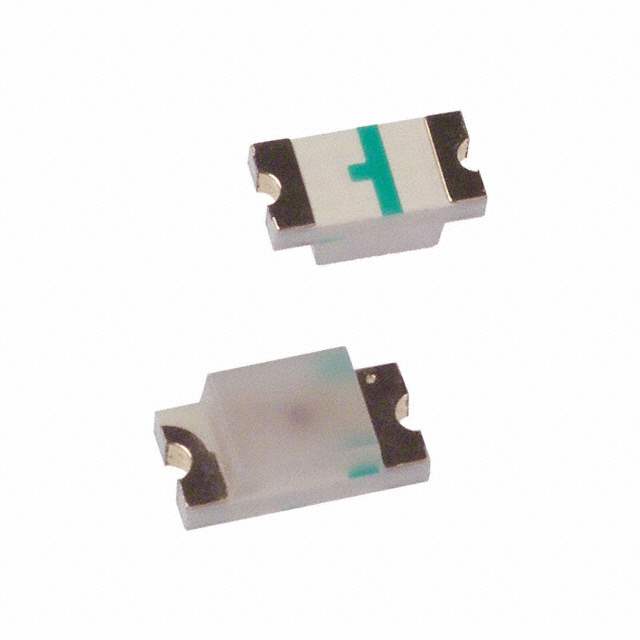

HSMG-C150 Real Image
Same model may have multiple batches, images only for reference.

HSMG-C150

Part No HSMG-C150
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED Uni-Color Green 570nm 2-Pin Chip LED T/R / LED GREEN DIFFUSED 1206 SMD
Datasheet
HSMG-C150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 15mcd
Lens Style/Size Rectangle with Flat Top, 2.00mm x 1.60mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package Chip LED
Height (Max) 1.10mm
Win Source Part Number 095758-HSMG-C150
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, LED Lighting
Family Name HSMG-C150
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin Taiwan, China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HSMG-C150 CAD Model

Description

The HSMG-C150 from Broadcom Limited is a green chip LED in a rectangle with flat top, 2.00mm x 1.60mm lens style/size. It has a viewing angle of 170° and a millicandela rating of 15mcd. The LED operates with a forward voltage of 2.2V and a current test of 20mA. It has a wavelength-dominant of 572nm and a wavelength-peak of 570nm. The HSMG-C150 is available in a reel package and is commonly used in industrial and LED lighting applications.
