Same model may have multiple batches, images only for reference.

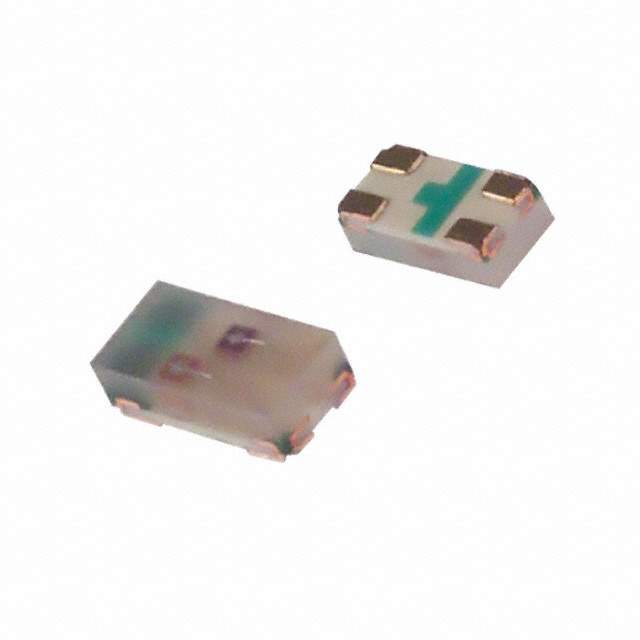

HSMF-C169 Real Image
Same model may have multiple batches, images only for reference.

HSMF-C169

Part No HSMF-C169
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description Miniature Bi-Color Surface Mount ChipLEDs | LED AMBER/BLUE DIFFUSED 0603 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Color Amber, Blue
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd Amber, 10mcd Blue
Lens Style Rectangle with Flat Top
Lens Size 1.60mm x 0.80mm
Voltage - Forward (Vf) 1.9V Amber, 3.4V Blue
Current - Test 20mA Amber, 10mA Blue
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 592nm Amber, 470nm Blue
Wavelength - Peak 595nm Amber, 468nm Blue
Manufacturer Package 0603 (1608 Metric)
Supplier Device Package 0603
Parts Dimension 1.60mm L x 0.80mm W
Height (Maximum) 0.50mm
Family Part Number HSMF-C16
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1181842-HSMF-C169
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMF-C169 CAD Model

Description

The Broadcom Limited 1181842-HSMF-C169 is a rectangular SMD LED with a white diffused lens.

  • Shape: Rectangular
  • Mounting: SMD
  • Lens: White Diffused
  • Colors: Amber and Blue
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Amber): 90mcd
  • Millicandela Rating (Blue): 10mcd
  • Package Quantity: 1
  • Supply and Demand: Balance
  • Manufacturer: Broadcom Limited
