Same model may have multiple batches, images only for reference.

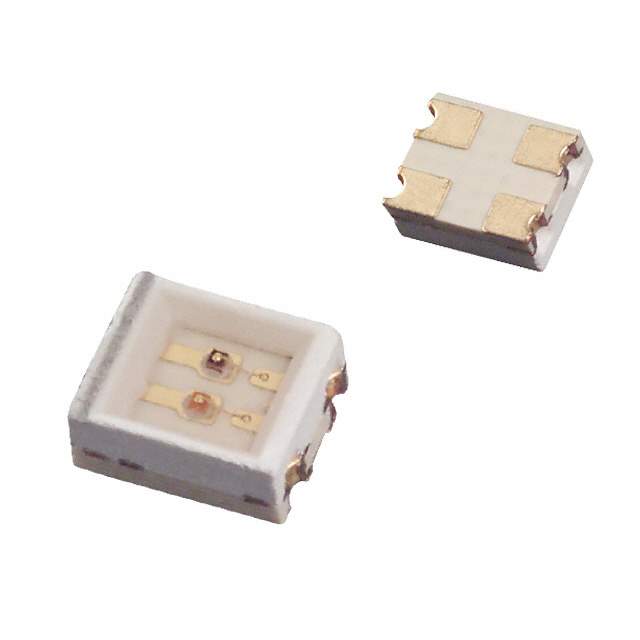

SML-020MVTT87 Real Image
Same model may have multiple batches, images only for reference.

SML-020MVTT87

Part No SML-020MVTT87
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 1210 SMD / Green, Red LED Indication - Discrete 2.2V Green, 2V Red 1210 (3225 Metric)
Datasheet
SML-020MVTT87 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20mcd Green, 6.3mcd Red
Lens Style Rectangle with Flat Top
Lens Size 2.30mm x 2.10mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Mounting Surface Mount
Wavelength - Peak 570nm Green, 650nm Red
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210 (3025 Metric)
Size / Dimension 3.00mm L x 2.50mm W
Height (Max) 1.50mm
Base Product Number SML-020
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number SML-020MVTT87ML,SML-020MVTT87MK,SML-020MVTT87NL,846-SML-020MVTT87CT,SML-020MVTT87NK,SML020MVTT87,846-SML-020MVTT87DKR,SML-020MVTT87-ND,SML-020MVTT87PL,846-SML-020MVTT87TR,SML-020MVTT87PK
Standard Package 2,500
Win Source Part Number 1331880-SML-020MVTT87
Ultra Librarian 3D Model Ultra Librarian SML-020MVTT87 CAD Model

Description

The Rohm Semiconductor SML-020MVTT87 is a surface mount LED indication device with a rectangular lens style and a flat top.

  • Lens Style: Rectangular
  • Lens Top: Flat
  • Size: 3.00mm L x 2.50mm W
  • Height: 1.50mm
  • Color: Green and Red
  • Millicandela Rating: 20mcd (Green), 6.3mcd (Red)
  • Forward Voltage: 2.2V (Green), 2V (Red) @ 20mA
  • Peak Wavelength: 570nm (Green), 650nm (Red)
  • Temperature Range: -40°C to 85°C
  • Standard Package: 2,500
