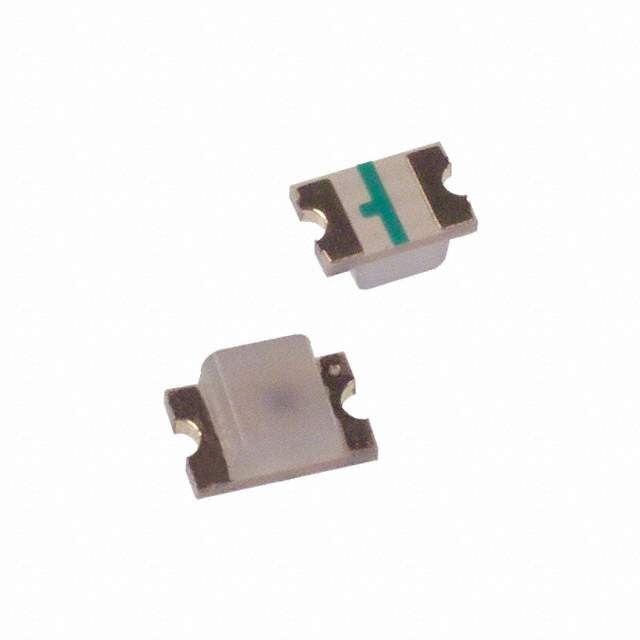

HSMC-C170 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 170°
Mounting Style SMD
Wavelength - Dominant 626nm
Wavelength - Peak 637nm
Manufacturer Package 0805 (2012 Metric)
Supplier Device Package Chip LED
Dimension 2.00mm L x 1.25mm W
Height (Maximum) 0.80mm
Part Number Series HSMC-C170
Manufacturer Pack Quantity 4,000
MSL Level 2A (4 Weeks)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800758-HSMC-C170
Ultra Librarian 3D Model Ultra Librarian HSMC-C170 CAD Model

Description

The Broadcom Limited 800758-HSMC-C170 is a chip LED with a diffused white lens.

  • Lens Style: Rectangular Flat Top
  • Viewing Angle: 170 degrees
  • Millicandela Rating: 90mcd
  • Voltage Forward (Vf): 1.9V
  • Current Test: 20mA
  • Wavelength Dominant: 626nm
  • Wavelength Peak: 637nm
  • Height: 0.80mm
  • Package: 0805 (2012 Metric)
  • Manufacturer Pack Quantity: 4,000
  • MSL Level: 2A (4 weeks)
