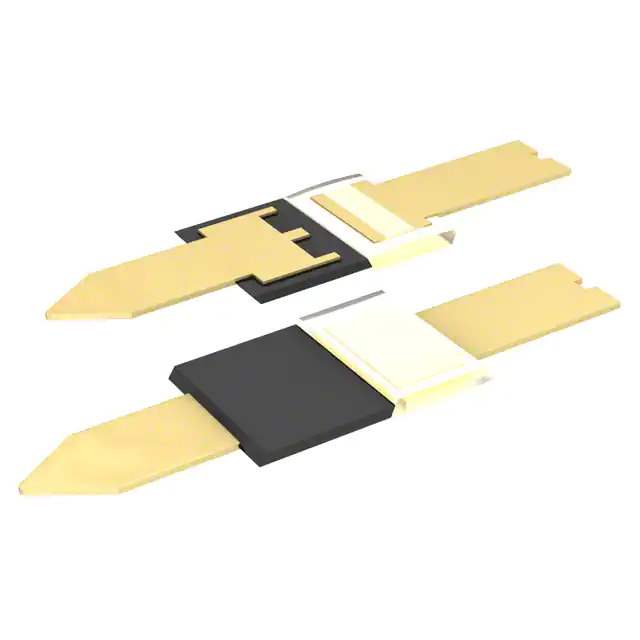

HSCH-5512 Real Image
Same model may have multiple batches, images only for reference.

HSCH-5512

Part No HSCH-5512
Manufacturer Broadcom Limited
Catalog RF Diodes
Description DIODE SCHOTTKY PAIR 500V BEAM LD
Datasheet
HSCH-5512 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Broadcom Limited
Series HSCH-55XX
Package Bulk
Product Status Obsolete
Diode Type Schottky - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 4V
Capacitance @ Vr, F 0.15pF @ 0V, 1MHz
Resistance @ If, F 3Ohm @ 5mA, 1MHz
Power Dissipation (Max) 150 mW
Temperature Range - Operating -65°C ~ 175°C
Package / Case 3-SMD, Flat Lead
Base Product Number HSCH
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 873909-HSCH-5512
Ultra Librarian 3D Model Ultra Librarian HSCH-5512 CAD Model

Description

The HSCH-5512 is a Schottky diode designed for RF applications and manufactured by Broadcom Limited.

  • Diodes per package: 1 pair of diodes connected in series
  • Capacitance: 0.15pF @ 0V and 1MHz
  • Maximum Peak Reverse Voltage: 4V
  • Maximum Power Dissipation: 150mW
  • Resistance: 3Ohm @ a forward current of 5mA and frequency of 1MHz
  • Series: HSCH-55XX
  • Package: Bulk
  • Pieces per package: 50 pieces
  • Package/Case: 3-SMD, flat lead
  • Operating Temperature Range: -65°C to 175°C
  • ECCN Code: EAR99
  • Status: Obsolete
