Same model may have multiple batches, images only for reference.

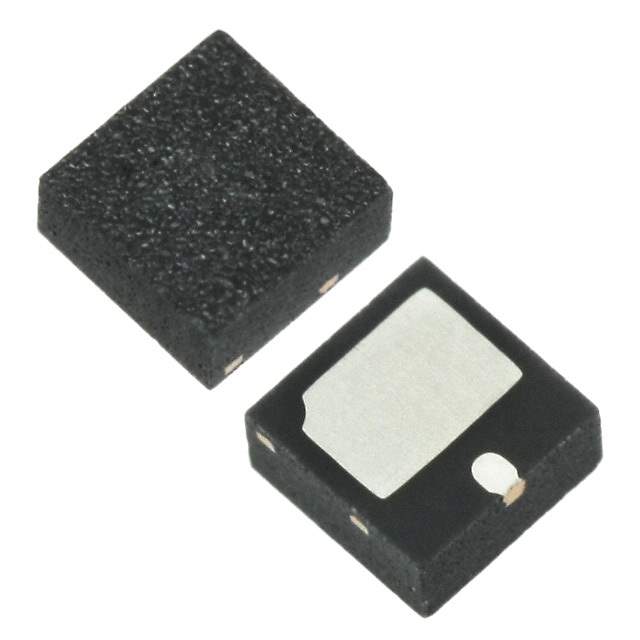

SMP1304-087LF Real Image
Same model may have multiple batches, images only for reference.

SMP1304-087LF

Part No SMP1304-087LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Datasheet
SMP1304-087LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 200V
Current - Max 200 mA
Capacitance @ Vr, F 0.3pF @ 30V, 1MHz
Resistance @ If, F 2Ohm @ 100mA, 100MHz
Power Dissipation (Max) 1 W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Package / Case 2-VSFN Exposed Pad
Supplier Device Package 2-QFN (2x2)
Other Names 863-1678-6,863-1678-1,863-1678-2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1281095-SMP1304-087LF
Ultra Librarian 3D Model Ultra Librarian SMP1304-087LF CAD Model

Description

The SMP1304-087LF is a single PIN diode designed for use in RF applications. It is a surface mount device with a package/case of 2-VSFN exposed pad.

  • Manufacturer: Skyworks Solutions Inc.
  • Maximum Current: 200mA
  • Maximum Peak Reverse Voltage: 200V
  • Maximum Power Dissipation: 1W
  • Maximum Resistance: 2 ohms @ 100mA, 100MHz
  • Capacitance: 0.3pF @ 30V and 1MHz
  • Operating Temperature: -55°C to 175°C
