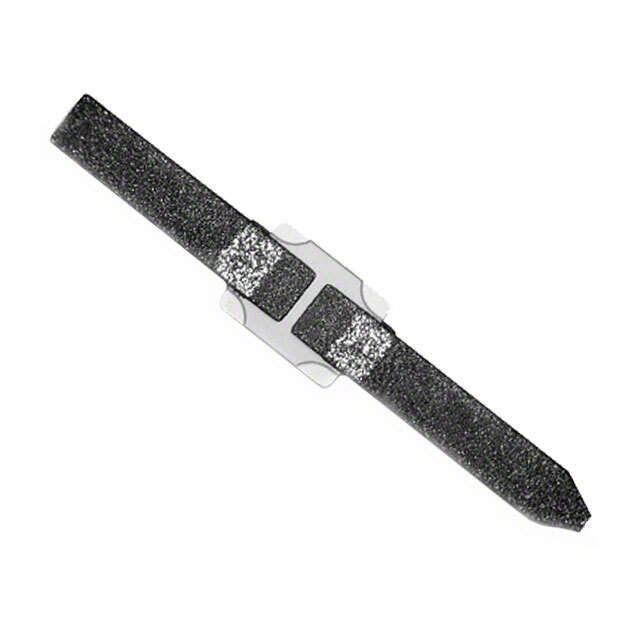

Same model may have multiple batches, images only for reference.
DSG9500-000 Skyworks Solutions Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DSG9500-000

Part No DSG9500-000
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 100V 250MW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsDiodesRF Diodes
Manufacturer Skyworks Solutions Inc.
Packaging Tray
Part Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 100V
Capacitance @ Vr, F 0.025pF @ 50V, 1MHz
Resistance @ If, F 4Ohm @ 50mA, 100MHz
Power Dissipation (Max) 250 mW
Operating Temperature -65°C ~ 150°C (TA)
Base Product Number DSG9500
Ultra Librarian 3D Model Ultra Librarian DSG9500-000 CAD Model
