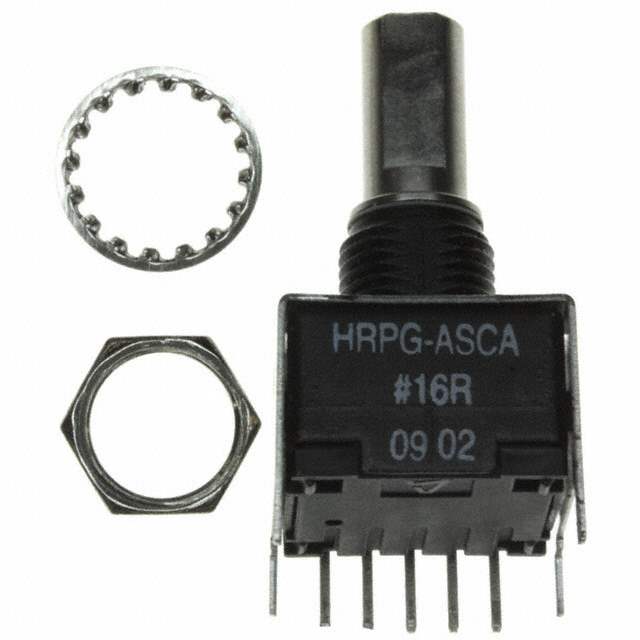

HRPG-ASCA#16R Real Image
Same model may have multiple batches, images only for reference.

HRPG-ASCA#16R

Part No HRPG-ASCA#16R
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPTICAL PNL MNT 120CPR
Datasheet
HRPG-ASCA#16R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 120
Supply Voltage - Operating 5V
Actuator Type 1/4" Dia Flatted End
Detent No
Built in Switch No
Mounting PCB, Through Hole
Termination Style PC Pin
Rotational Life (Cycles Min) 1M
Win Source Part Number 017010-HRPG-ASCA#16R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HRPG-ASCA#16R CAD Model

Description

The HRPG-ASCA#16R is an active optical encoder component manufactured by Broadcom Limited. This product is designed for use in PCB through-hole mounting with a PC pin termination style. With a pulse per revolution of 120, this product has a medium popularity and a limited supply and demand status. The HRPG-ASCA#16R is an optical encoder type with a rotational life of 1M cycles minimum.
