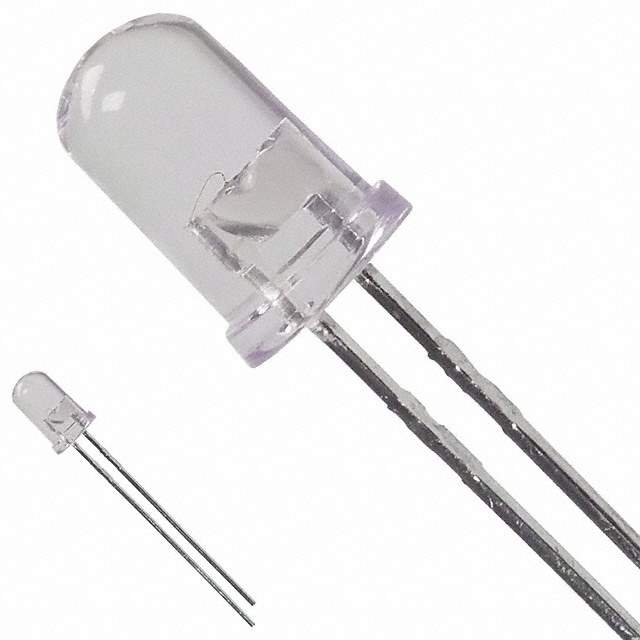

HLMP-EG24-PS000 Real Image
Same model may have multiple batches, images only for reference.

HLMP-EG24-PS000

Part No HLMP-EG24-PS000
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR 5MM ROUND T/H
Datasheet
HLMP-EG24-PS000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1690mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 5.00mm
Forward Voltage 1.9V
Current - Test 20mA
Viewing Angle 23°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 3/4
Height (Max) 8.91mm
Win Source Part Number 1043560-HLMP-EG24-PS000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-EG24-PS000 CAD Model

Description

The Broadcom Limited HLMP-EG24-PS000 is a red LED with a viewing angle of 23° and a forward voltage of 1.9V.

  • Package: T-1 3/4
  • Mounting: Through-Hole
  • Lens Style/Size: Round with a domed top, 5mm (T-1 3/4), 5.00mm
  • Millicandela Rating: 1690mcd
  • Wavelength - Dominant: 626nm
  • Wavelength - Peak: 635nm
  • Status: Active
  • Popularity: Medium
  • Quantity per Package: 2k pcs
