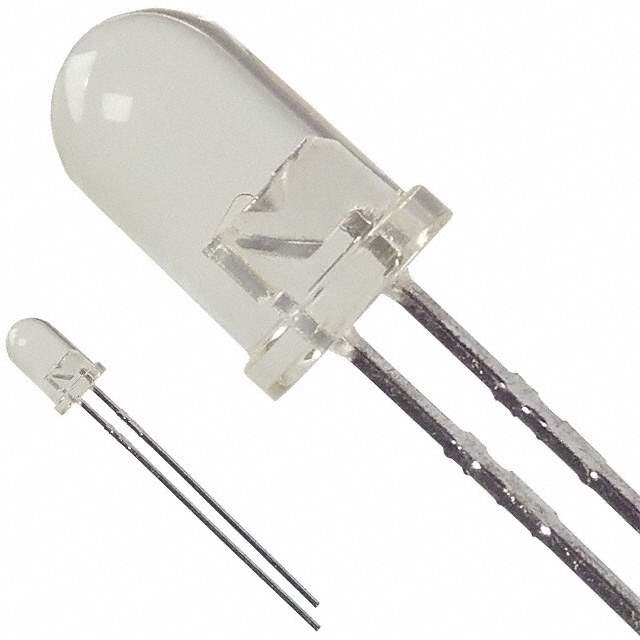

HLMP-C323 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Broadcom Limited
Packaging Bulk
Color Yellow
Configuration Standard
Lens Color Yellow
Lens Transparency Clear
Millicandela Rating 170mcd
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 25°
Mounting Through Hole
Wavelength - Dominant 589nm
Wavelength - Peak 590nm
Case / Package Radial
Supplier Device Package T-1 3/4
Height (Max) 8.91mm
Base Product Number HLMP-C323
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number HLMPC323,516-1353
Standard Package 2,000
Win Source Part Number 1331803-HLMP-C323
Ultra Librarian 3D Model Ultra Librarian HLMP-C323 CAD Model

Description

The HLMP-C323 LED is a yellow colored through-hole LED from Broadcom Limited.

  • Viewing Angle: 25 degrees
  • Millicandela Rating: 170mcd
  • Dominant Wavelength: 589nm
  • Peak Wavelength: 590nm
  • Forward Voltage: 2.1V
  • Test Current: 20mA
  • Lens Style: Round with Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Package: Radial
  • Supplier Device Package: T-1 3/4
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
