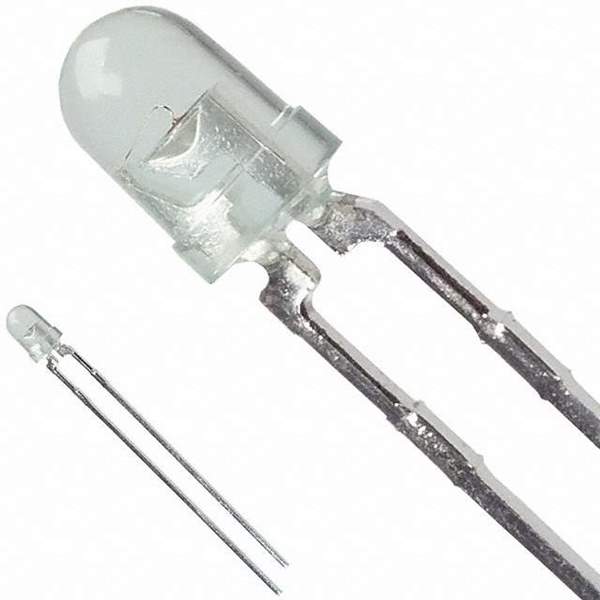

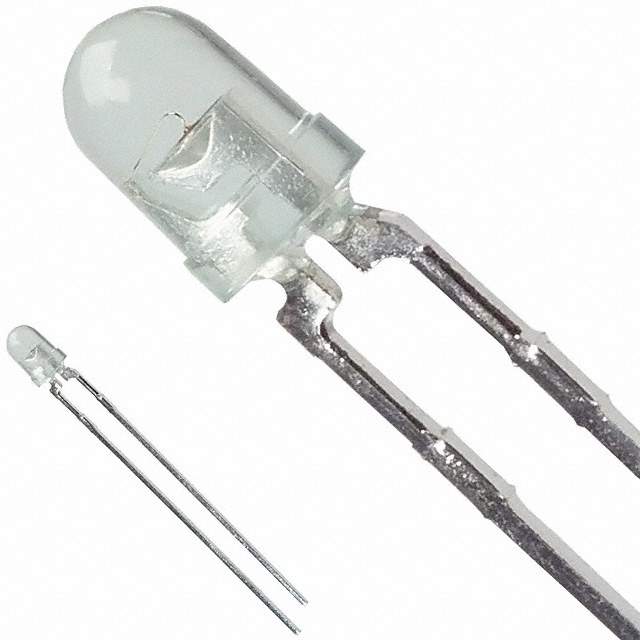

HLMP-1540 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1540

Part No HLMP-1540
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR T-1 T/H / Green 569nm LED Indication - Discrete 2.2V Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Bulk
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 45mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 24°
Mounting Type Through Hole
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Package / Case Radial
Supplier Device Package T-1
Height (Max) 6.35mm
Base Product Number HLMP-1540
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-1301,516-1301-NDR
Standard Package 2,000
Win Source Part Number 1014138-HLMP-1540
Ultra Librarian 3D Model Ultra Librarian HLMP-1540 CAD Model

Description

The HLMP-1540 is a green LED indication discrete electronic component manufactured by Broadcom Limited.

  • Application: Optoelectronics
  • Package: Bulk
  • Standard Package: 2000 pieces
  • Viewing Angle: 24 degrees
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 45mcd
  • Forward Voltage (Vf): 2.2V
  • Current Test: 20mA
  • Wavelength: Dominant @ 569nm, Peak @ 565nm
  • Height: 6.35mm
  • Mounting Type: Through hole
  • Package: Radial
  • Supplier Device Package: T-1
  • ECCN: EAR99
  • REACH: Unaffected
