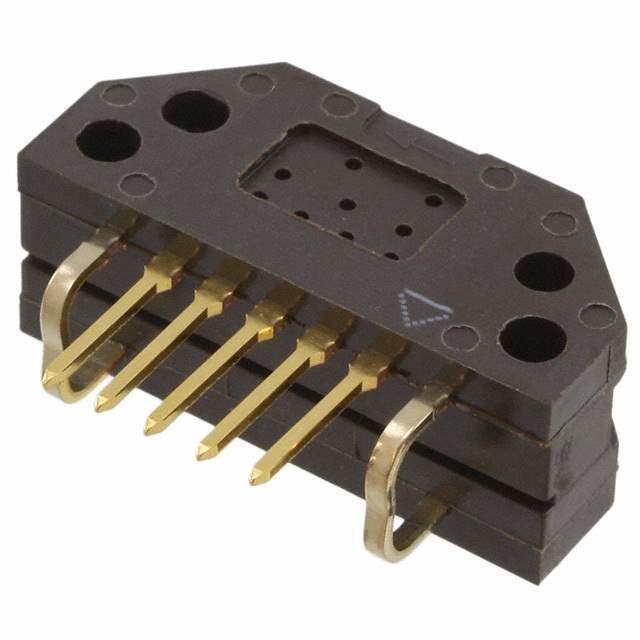

HEDS-9100#F00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#F00

Part No HEDS-9100#F00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 256CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 256
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 068037-HEDS-9100#F00
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Building Automation, Industrial
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#F00 CAD Model

Description

The Broadcom Limited 068037-HEDS-9100#F00 is an incremental optical encoder.

  • Application: Computers, computer peripherals, building automation and industrial applications
  • Supply Voltage: 5V
  • Output: Quadrature signals
  • Pulses per Revolution: 256
  • Mounting: Chassis mount
  • Termination Style: Terminal pins
  • Codewheel: Not included
  • Encoder Type: Optical
  • Detent: No detent
  • Package Quantity: 100
