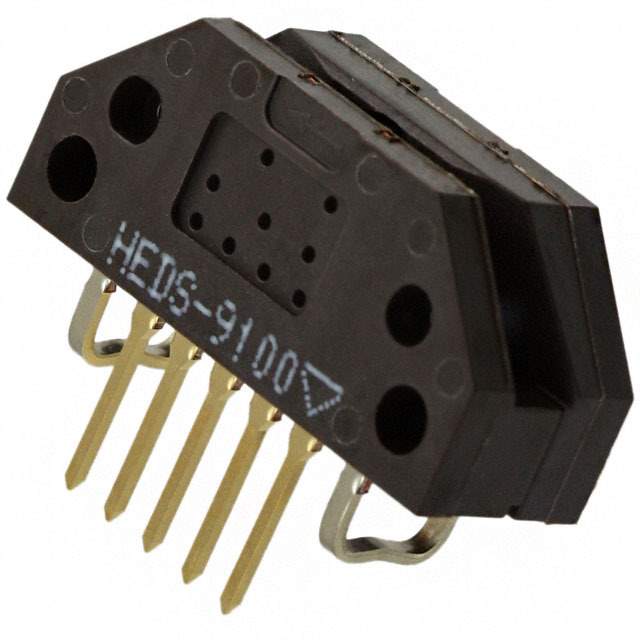

HEDS-9100#C00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#C00

Part No HEDS-9100#C00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 100CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 100CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 100
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775882-HEDS-9100#C00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9100
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#C00 CAD Model

Description

The HEDS-9100 optical encoder is a reliable and precise quadrature incremental encoder from Broadcom Limited.

  • Operating Supply Voltage: 5V
  • Pulses Per Revolution: 100
  • Encoder Type: Optical
  • Orientation: Vertical
  • Mounting: Chassis
  • Codewheel: Not included
  • Detent: No
  • Rotational Life: Not specified
  • Suitable for use in: Sensors and transducers applications
  • Package Quantity: 100
  • Popularity: Medium
  • Estimated EOL Date: 2027
