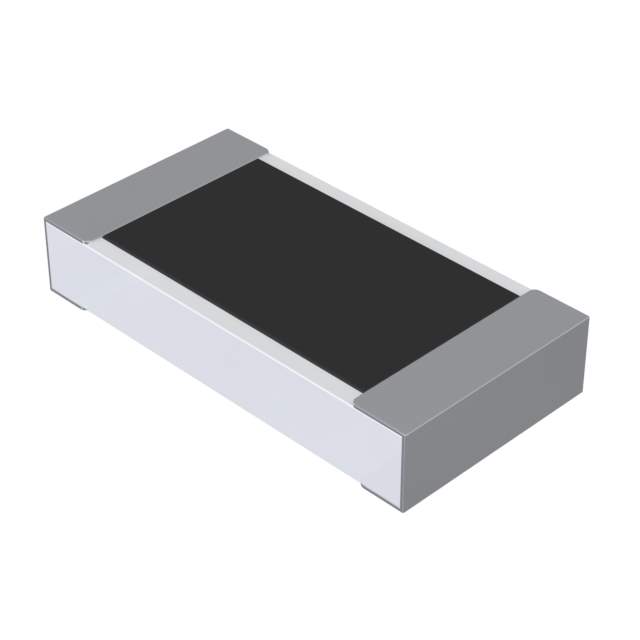

The CRGH1206F120R is a thick film chip resistor manufactured by TE Connectivity. It is designed for general-purpose applications requiring a stable and reliable resistance. This surface mount resistor is characterized by its robust construction and excellent performance, making it suitable for a wide range of electronic circuits.

Applications

• Current sensing
• Voltage division
• Pull-up and pull-down resistor applications
• LED current limiting
• Signal termination
• Power supplies
• Automotive electronics
• Industrial control

Features

• Size 1206 (3216 metric)
• Resistance Value: 120 Ohms
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Temperature Coefficient: ±100 ppm/°C
• Thick Film Element
• Surface Mount Technology (SMT)
• RoHS Compliant

Benefits

• Stable Resistance: Thick film construction ensures a stable resistance value over a wide range of operating conditions.
• Compact Size: The 1206 package provides a good balance between power handling and board space efficiency.
• Easy Assembly: Surface mount design simplifies the assembly process, making it suitable for automated manufacturing.
• Cost-Effective: The CRGH series offers a reliable performance at a competitive price point.
• Wide Temperature Range: Suitable for various environmental conditions.
• High Precision: 1% tolerance ensures accurate resistance values in sensitive circuits.

Additional Details

The CRGH1206F120R is designed to meet industry standards for surface mount resistors and is suitable for reflow soldering processes. It is supplied on tape and reel packaging for automated pick and place assembly. The resistor's small size makes it ideal for high-density circuit boards where space is limited. The temperature coefficient of ±100 ppm/°C ensures minimal resistance drift over temperature variations.
