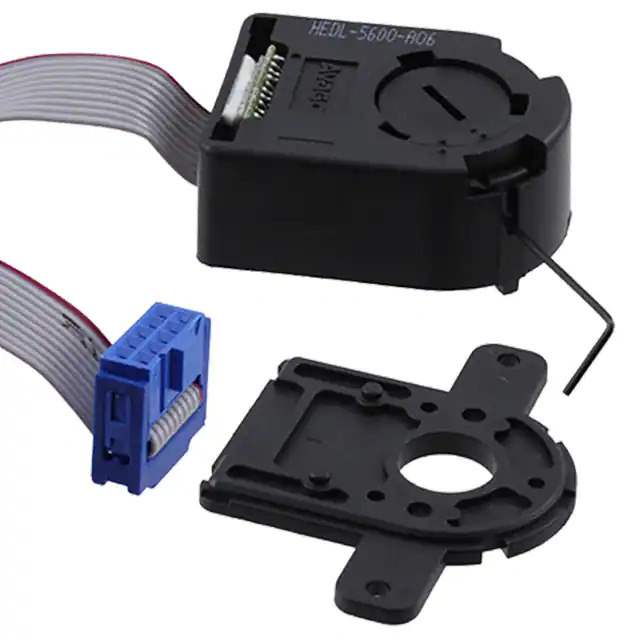

HEDL-5605#A06 Real Image
Same model may have multiple batches, images only for reference.

HEDL-5605#A06

Part No HEDL-5605#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Broadcom Limited
Series HEDL
Package Tray
Product Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Cable with Connector
Base Product Number HEDL-5605
Standard Package 20 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920136-HEDL-5605#A06
Ultra Librarian 3D Model Ultra Librarian HEDL-5605#A06 CAD Model

Description

The electronic component with Win Source Part Number 920136-HEDL-5605#A06 is an industrial encoder from the HEDL series.

  • Termination Style: cable with connector
  • Packaging: tray format
  • Standard Package: 20 pieces
  • Output Type: quadrature (incremental)
  • Actuator Type: 1/4" open center
  • Type: optical encoder
  • Resolution: 500 pulses per revolution
  • Detent: no detent
  • Built-in Switch: does not include a built-in switch
  • Voltage Supply: 5V
  • Mounting: suitable for chassis mount and motor applications
  • Classification: EAR99
  • REACH: unaffected
  • HTSUS Code: 8543.70.4500
  • Manufacturer: Broadcom Limited
  • Base Product Number: HEDL-5605
