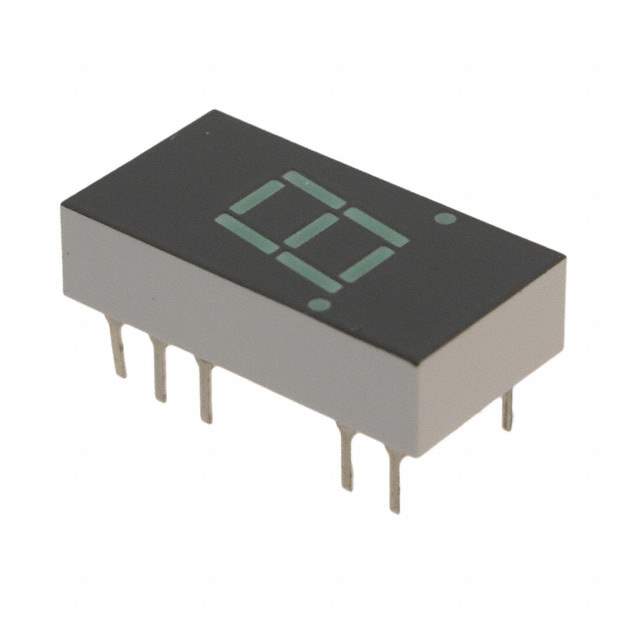

HDSP-3601 Real Image
Same model may have multiple batches, images only for reference.

HDSP-3601

Part No HDSP-3601
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display | LED 7-SEG 7.6MM CA GREEN RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Number of Characters 1
Parts Dimension 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) 2.1V
Current - Test 10mA
Millicandela Rating 2.7mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 14-DIP , 10 Leads
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179729-HDSP-3601
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-3601 CAD Model

Description

The 1179729-HDSP-3601 is a 7-segment display with a common anode pin manufactured by Broadcom Limited.

  • Millicandela Rating: 2.7mcd
  • Peak Wavelength: 566nm
  • Display Type: 7-segment
  • Character Count: one
  • Digit/Alpha Size: 0.30" (7.62mm)
  • Power Dissipation: 105mW
  • Package: 14-DIP, 10-lead
  • Popularity: popular
  • Supply and Demand Status: limited
  • Pack Size: 200 units
