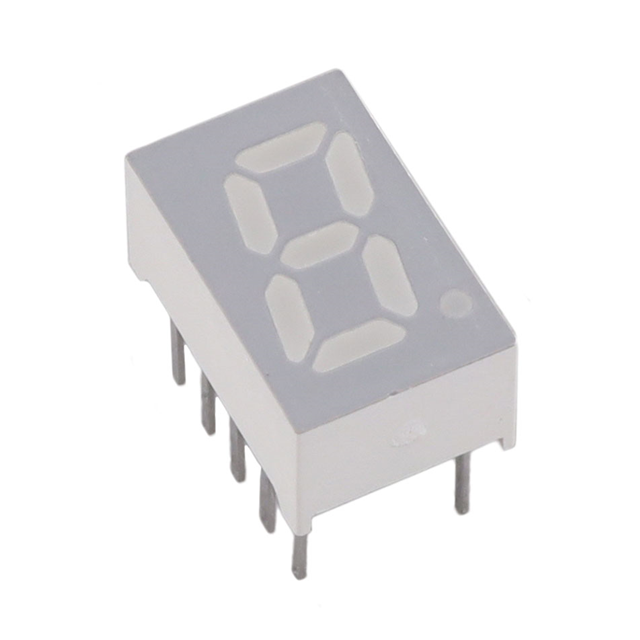

HDSP-U101 Real Image
Same model may have multiple batches, images only for reference.

HDSP-U101

Part No HDSP-U101
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description Displays Module 1DIGIT 8LED Red CA 10-Pin DIP Module Tube / 8 mm (0.31 inch) Ultra Mini Seven Segment Displays | DISPLAY 7SEGMENT ALGAAS CA 0.31"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 1
Parts Dimension 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm)
Digit/Alpha Size 0.31" (8.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) 1.7V
Current - Test 5mA
Millicandela Rating 3.6mcd
Wavelength - Peak 645nm
Power Dissipation (Maximum) 37mW
Manufacturer Package 10-DIP (0.209", 5.30mm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179755-HDSP-U101
Manufacturer Homepage www.home.agilent.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name HDSP-U101
Introduction Date May 24, 2005
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HDSP-U101 CAD Model

Description

The 1179755-HDSP-U101 from Broadcom Limited is a 7-segment display device that comes in a 10-DIP package with a width of 0.209 inches.

  • Peak Wavelength: 645nm
  • Millicandela Rating: 3.6mcd
  • Common Pin: Common Anode
  • Digit/Alpha Size: 0.31 inches
  • Current Compatibility: 5mA
  • Power Dissipation: 37mW
  • Category: Optoelectronics
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.433 inches H x 0.280 inches W x 0.197 inches D
  • Voltage Forward: 1.7V
  • Alternative Parts: NAR133SB, LAP-301VB, LA-301VB, LA-301VBN
