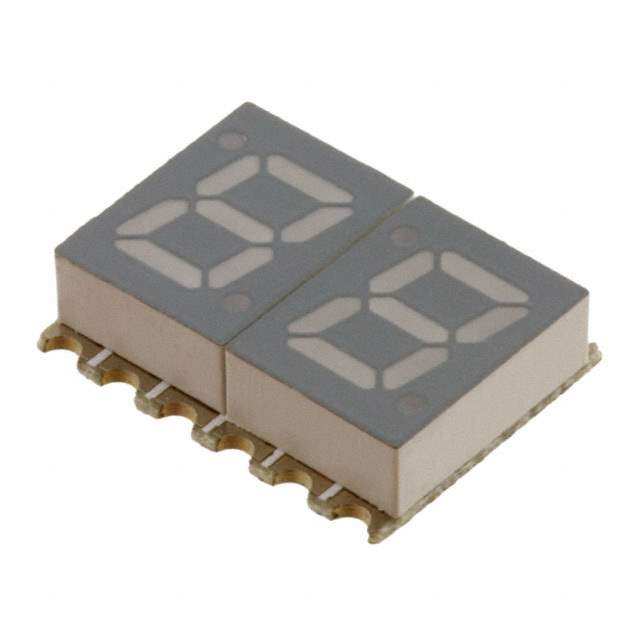

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Number of Characters 2
Parts Dimension 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) 2V
Current - Test 20mA
Millicandela Rating 7.5mcd
Wavelength - Peak 632nm
Power Dissipation (Maximum) 65mW
Manufacturer Package 10-SMD, No Lead
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1179709-HDSM-293C
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSM-293C CAD Model

Description

The HDSM-293C is a 7-segment display from Broadcom Limited.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 10-SMD, no lead
