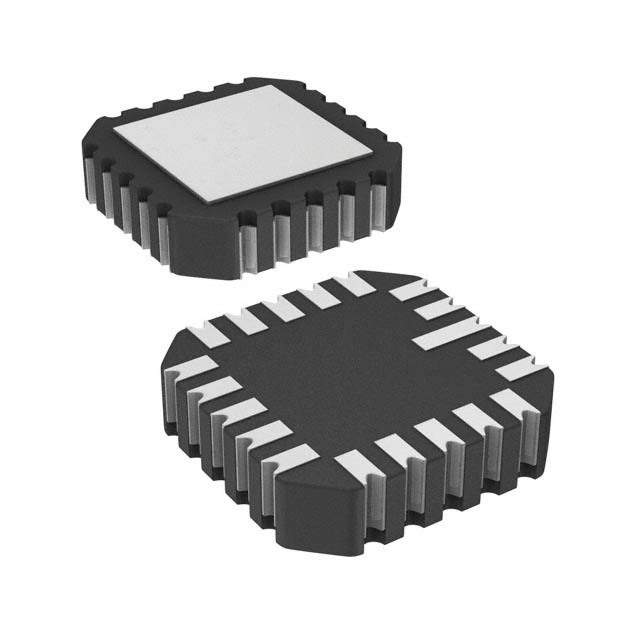

HCPL-6730 Real Image
Same model may have multiple batches, images only for reference.

HCPL-6730

Part No HCPL-6730
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1.5KV 2CH DARLNG 20-LCCC  /  Optoisolator Darlington Output 1500VDC 2 Channel 20-LCCC (8.89x8.89)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Broadcom Limited
Package Tube
Number of Channels 2
Voltage - Isolation 1500VDC
Current Transfer Ratio (Min) 200% @ 5mA
Turn On / Turn Off Time (Typ) 2µs, 8µs
Input Type DC
Output Type Darlington
Voltage - Output (Max) 20V
Current - Output / Channel 40mA
Voltage - Forward (Vf) (Typ) 1.4V
Current - DC Forward (If) (Max) 10 mA
Vce Saturation (Max) 110mV
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 20-CLCC
Supplier Device Package 20-LCCC (8.89x8.89)
Base Product Number HCPL-6730
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names HCPL-6730-ND,516-3657
Standard Package 1
Win Source Part Number 1184961-HCPL-6730
Ultra Librarian 3D Model Ultra Librarian HCPL-6730 CAD Model

Description

The HCPL-6730 is a dual channel optoisolator with Darlington output manufactured by Broadcom Limited.

  • Current Transfer Ratio: 200% @ 5mA
  • Maximum Output Voltage: 20V
  • Rise/Fall Time: 2μs/8μs
  • Vce Saturation: 110mV
  • RoHS: Non-compliant
  • Temperature Range: -55°C to 125°C
  • Category: Isolator
  • Popularity: Low
  • Supply and Demand Status: Limited due to its shortage
