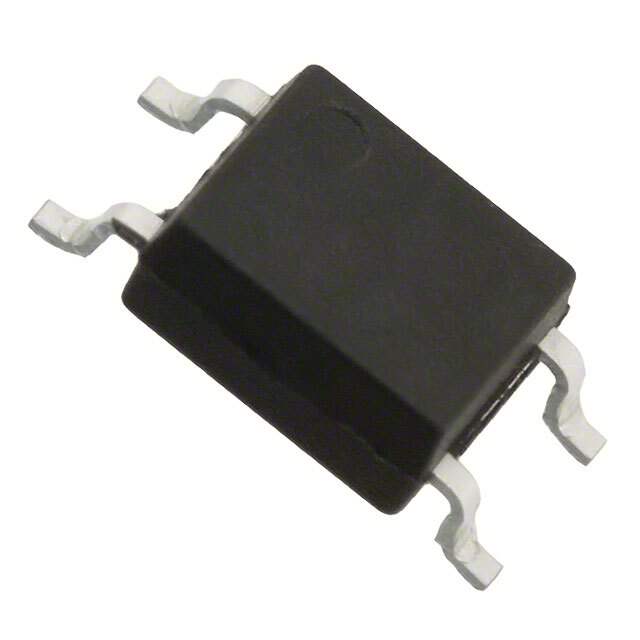

HCPL-181-06CE Real Image
Same model may have multiple batches, images only for reference.

HCPL-181-06CE

Part No HCPL-181-06CE
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANS 4MINIFLAT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SO
Win Source Part Number 016855-HCPL-181-06CE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Family Name HCPL-181
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Singapore, China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HCPL-181-06CE CAD Model

Description

The Broadcom Limited HCPL-181-06CE is a high-performance isolator component.

  • Output Voltage (Max): 80V
  • Channel Output Current: 50mA
  • Channels: 1
  • Output Type: Single-Channel
  • Forward Voltage: 1.2V
  • Component Type: Active
  • Applications: Isolators
  • Supply/Demand: Balanced
