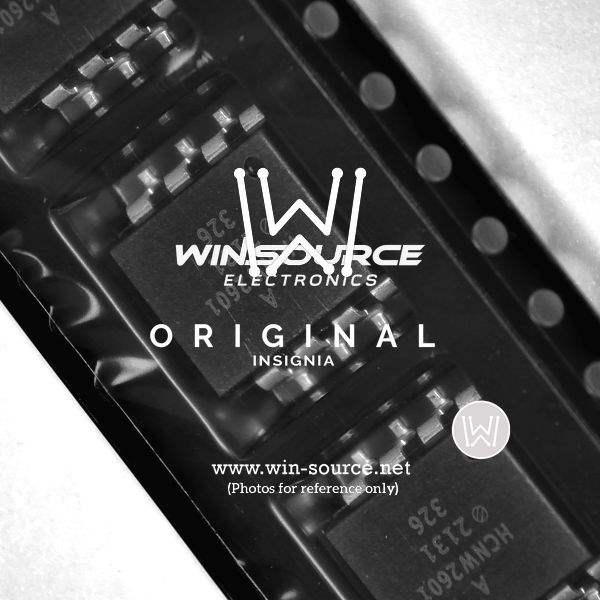

HCNW2601-000E

Name: HCNW2601-000E
Brand: Broadcom Limited
SKU: 141719
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HCNW2601-000E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5KV OPEN COLLECTOR 8DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Tube/Rail
Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Isolation Voltage	5000Vrms
Common Mode Transient Immunity (Min)	10kV/μs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Channel Output Current	50mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise and Fall Time	24ns, 10ns
Forward Voltage	1.64V
Continuous forward current- Max	20mA
Supply Voltage - Operating	4.5 V to 5.5 V
Temperature Range - Operating	-40°C to 85°C
Mounting	Through Hole
Case / Package	8-DIP
Win Source Part Number	016813-HCNW2601-000E
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Quantity per package	42
Ultra Librarian 3D Model	Ultra Librarian HCNW2601-000E CAD Model

Description

The Broadcom Limited isolator is an electronic component designed for electrical isolation.

Data Rate: 10MBd
Common Mode Transient Immunity: 10kV/μs
Propagation Delay: 100ns
Isolation Voltage: 5000Vrms
Mounting Type: Through-Hole
Case/Package: 8-DIP
Applications: Power Supplies, Computers, Electronic Equipment
