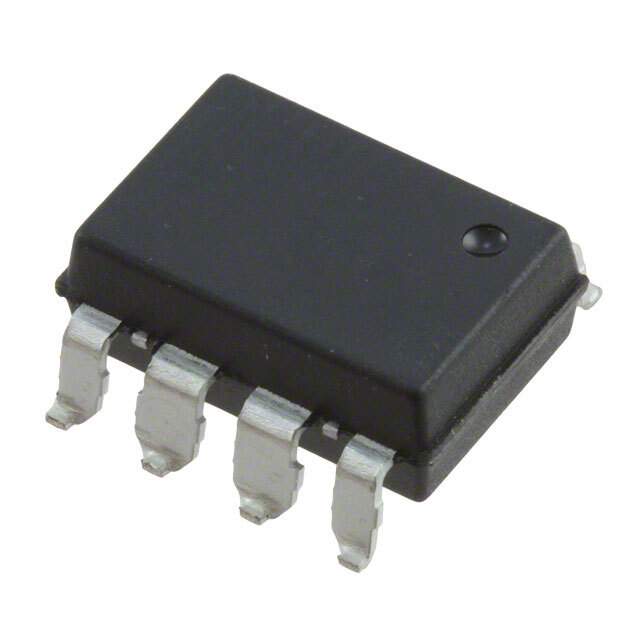

ASSR-1420-502E Real Image
Same model may have multiple batches, images only for reference.

ASSR-1420-502E

Part No ASSR-1420-502E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR DPST 0.6A 8SMD GW / Solid State Relay 25mA 1.65V DC-IN 0.6A 60V AC/DC-OUT 8-Pin PDIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Reel package
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 1 Ohm
Load Current 600mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 60 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-DIP Gull Wing
Relay Type Relay
Win Source Part Number 768860-ASSR-1420-502E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name ASSR-1420
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-1420-502E CAD Model

Description

The Broadcom Limited 707231 electronic component is a limited supply product that has a medium popularity rating.

  • Win Source Part Number: 768860-ASSR-1420-502E
  • Series: ASSR
  • Package: 8-SMD
  • Termination Style: Gull Wing
  • Circuit: DPST (2 Form A)
  • On-State Resistance (Maximum): 1 Ohm
  • Load Current: 600mA
  • Voltage Load: 0 ~ 60V
