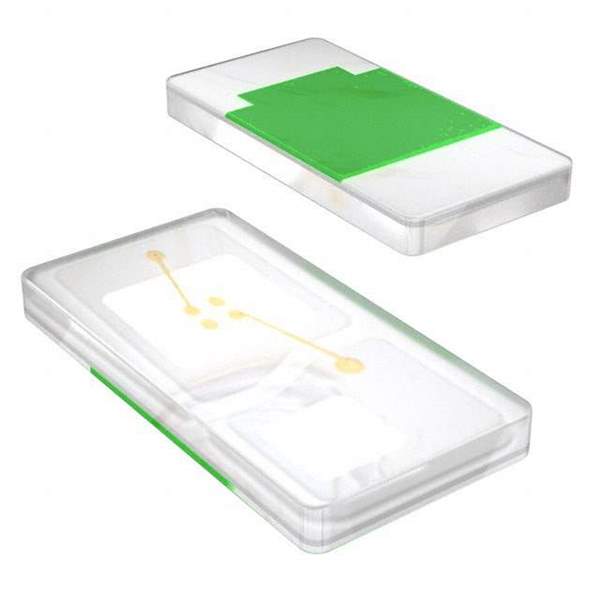

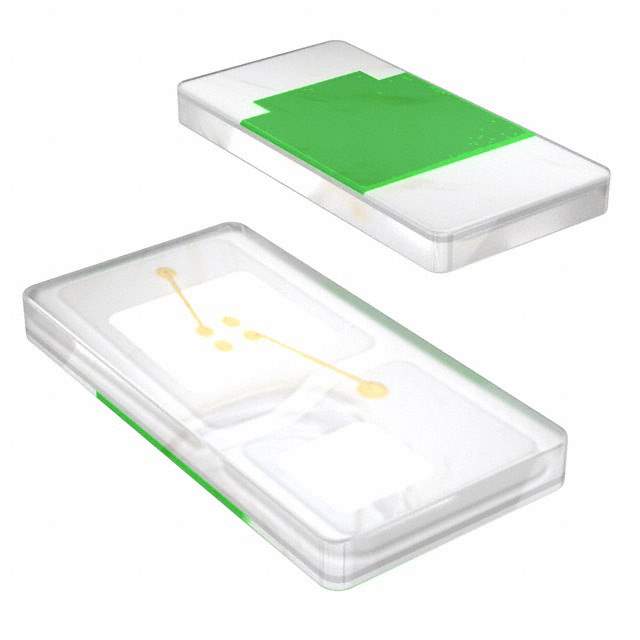

ASMT-CW20 Real Image
Same model may have multiple batches, images only for reference.

ASMT-CW20

Part No ASMT-CW20
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED WHITE CHIP SMD / White LED Indication - Discrete 3V 0603 (1608 Metric)
Datasheet
ASMT-CW20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color White
Configuration Standard
Millicandela Rating 180mcd
Lens Style Rectangle with Flat Top
Lens Size 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ) 3V
Current - Test 5mA
Viewing Angle 150°
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package Chip LED
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.30mm
Base Product Number ASMT-CW20
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names ASMT-CW20-ND,516-3216-6,516-3216-2,516-3216-1
Standard Package 4,000
Win Source Part Number 1133760-ASMT-CW20
Ultra Librarian 3D Model Ultra Librarian ASMT-CW20 CAD Model

Description

The ASMT-CW20 is a white LED indication discrete electronic component with a viewing angle of 150 degrees and a millicandela rating of 180mcd.

  • Mounting Technology: SMD (SMT)
  • Case: 0603 (1608 Metric)
  • Voltage Forward: 3V
  • Current Test: 5mA
  • Lens Style: Rectangle with flat top
  • Lens Size: 1.60mm x 0.80mm
  • Ideal for: Use in optoelectronics
