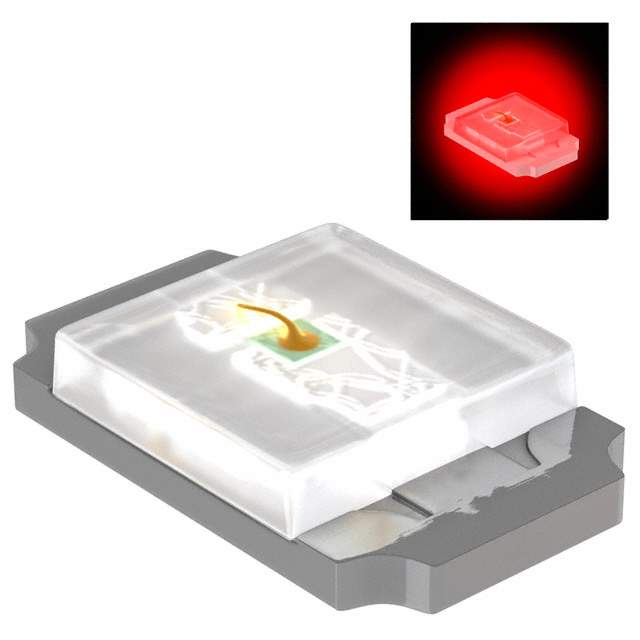

The SML-P12VTT86 Q is a surface-mount LED manufactured by Rohm Semiconductor. This LED is designed for various indicator and display applications where a compact size and high brightness are required. It is commonly used in consumer electronics, automotive applications, and industrial equipment.

Applications

• Indicator lights
• Backlighting for LCD displays
• Automotive lighting
• Consumer electronics
• Industrial equipment

Features

• Surface-mount LED
• Compact size
• High brightness
• Available in various colors
• Wide viewing angle

Benefits

• Space saving: The compact size enables dense designs.
• Easy to assemble: The surface mount design is compatible with automated assembly.
• Reliable: ROHM LEDs provide long life and consistent performance.
• Versatile: Suitable for many different applications due to brightness and viewing angle.

Additional Details

The SML-P12VTT86 Q LED provides reliable light output, and is appropriate for indication and display uses. It is commonly used with a current-limiting resistor, and may require a more sophisticated control circuit if precision brightness control is needed. This device comes in tape-and-reel packaging for automated assembly. Care should be taken when soldering these LEDs to ensure they are not overheated, which may affect their performance and longevity. This LED offers designers a flexible, reliable, and compact option for adding visual indication to a wide variety of products. The 'Q' at the end of the part number is related to the specific binning or characteristics of the part, so consulting the datasheet is important when specifying this part in a design.
