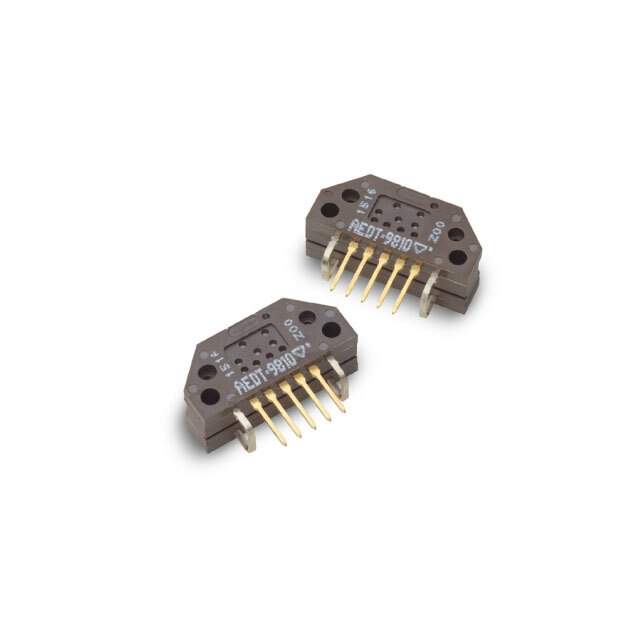

AEDT-9810-W00 Real Image
Same model may have multiple batches, images only for reference.

AEDT-9810-W00

Part No AEDT-9810-W00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER 3CH COMM HI TEMP 2500CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 2500CPR
Datasheet
AEDT-9810-W00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 2500
Operating Supply Voltage 4.5 V ~ 5.5 V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation User Selectable
Termination Style Terminal Pins
Win Source Part Number 768304-AEDT-9810-W00
Popularity Medium
Supply and Demand Status Limited
Family Name AEDT-9810-W00
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian AEDT-9810-W00 CAD Model

Description

The Broadcom Limited AEDT-9810-W00 is an optical encoder that is designed for use in sensors and transducers.

  • Output Type: Quadrature with index (incremental)
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Resolution: 2500 pulses per revolution
  • Applications: High precision
  • Packaging: Chassis mount
  • Orientation: User selectable
  • Codewheel: Does not come with
  • Detent: No detent
  • Popularity: Medium
  • Supply and Demand Status: Limited
