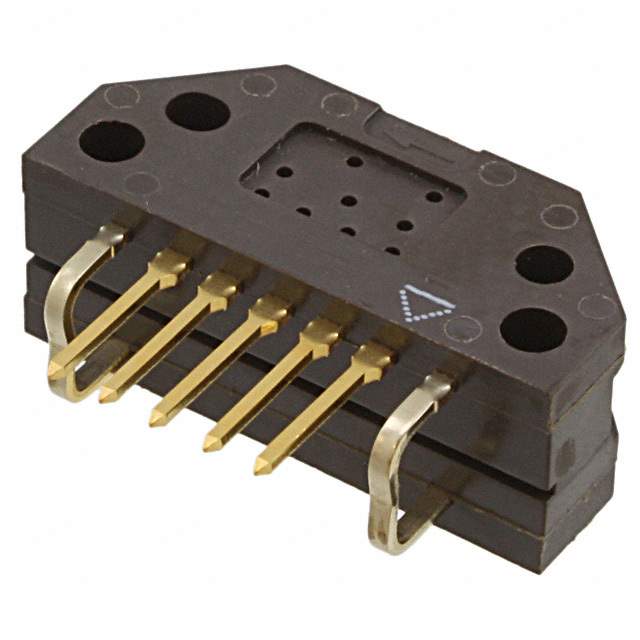

HEDS-9000#B00

Part No HEDS-9000#B00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 1000CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 1000CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 1000
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775875-HEDS-9000#B00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9000
Introduction Date June 11, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9000#B00 CAD Model

Description

The supply and demand status of this product is limited, as stated by Broadcom Limited.

  • Suitable for use in: A wide range of applications
  • Manufacturer's Homepage: www.broadcom.com
  • Orientation: Vertical
  • Mounting Type: Chassis mount
  • Encoder Type: Optical
  • Pulses Per Revolution: 1000
