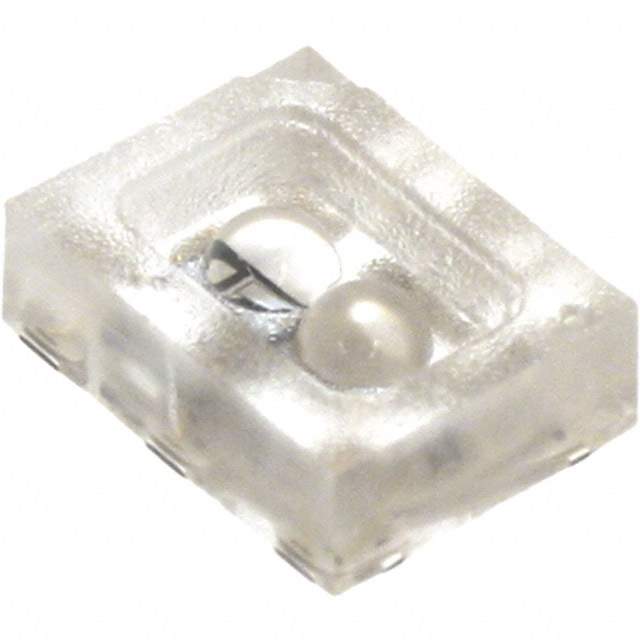

AEDR-8300-1Q1 Real Image
Same model may have multiple batches, images only for reference.

AEDR-8300-1Q1

Part No AEDR-8300-1Q1
Manufacturer Broadcom Limited
Catalog Optical Sensors - Reflective - Logic Output
Description SENSOR OPT REFLECTIVE 2MM 6SMD / Reflective Optical Sensor 0.079" (2mm) Codewheel/Codestrip 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Logic Output
Mfr Broadcom Limited
Series AEDR
Package Tape & Reel (TR)
Sensing Distance 0.079" (2mm)
Sensing Method Reflective
Sensing Object Codewheel/Codestrip
Mounting SMD (SMT)
Current - Supply 2.2 mA
Voltage - Supply 4.5V ~ 5.5V
Package / Case 6-SMD, No Lead
Features Compact Model
Base Product Number AEDR-8300
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.20.0000
Standard Package 500
Win Source Part Number 1007339-AEDR-8300-1Q1
Ultra Librarian 3D Model Ultra Librarian AEDR-8300-1Q1 CAD Model

Description

The Broadcom Limited AEDR-8300-1Q1 is a compact model reflective optical sensor designed for reflective logic output.

  • Mounting: SMD (SMT)
  • Sensing Distance: 0.079" (2mm)
  • Sensing: Codewheel/codestrip
  • Current Supply: 2.2 mA
  • Voltage Supply: 4.5V ~ 5.5V
  • Package: 500 units
