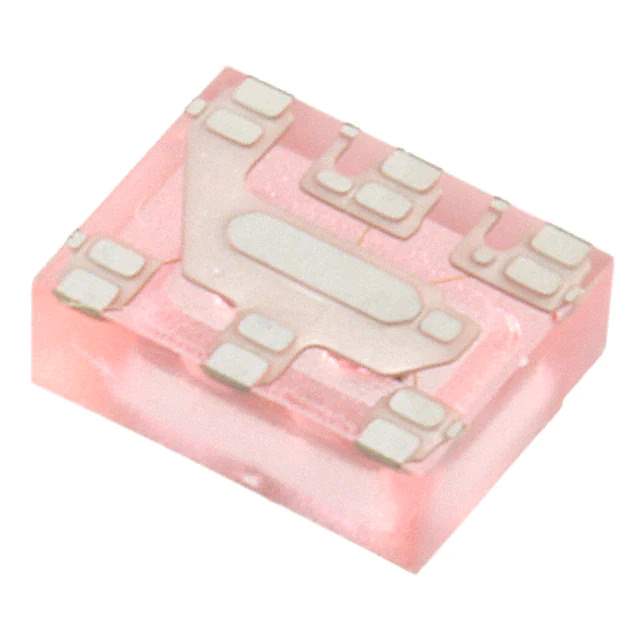

AEDR-8300-1P2 Real Image
Same model may have multiple batches, images only for reference.

AEDR-8300-1P2

Part No AEDR-8300-1P2
Manufacturer Broadcom Limited
Catalog Optical Sensors - Reflective - Logic Output
Description SENSOR OPT REFLECTIVE 2MM 6SMD / Reflective Optical Sensor 0.079" (2mm) Codewheel/Codestrip 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Reflective - Logic Output
Mfr Broadcom Limited
Series AEDR
Package Tape & Reel
Product Status Active
Sensing Distance 0.079" (2mm)
Sensing Method Reflective
Sensing Object Codewheel/Codestrip
Mounting Type Surface Mount
Current - Supply 2.2 mA
Voltage - Supply 4.5V ~ 5.5V
Package / Case 6-SMD, No Lead
Features Compact Model
Base Product Number AEDR-8300
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.20.0000
Win Source Part Number 847676-AEDR-8300-1P2
Ultra Librarian 3D Model Ultra Librarian AEDR-8300-1P2 CAD Model

Description

The AEDR-8300-1P2 is an active reflective optical sensor from the AEDR series.

  • Series: AEDR
  • Model: Compact
  • Packaging: Tape & Reel
  • Sensing Distance: 0.079 inches (2mm)
  • Application: Codewheel, Codestrip Detection
  • Voltage Supply: 4.5V to 5.5V
  • Current Supply: 2.2mA
  • Mounting Type: Surface Mount
  • Package: 6-SMD, No Lead
  • Manufacturer: Broadcom Limited
  • Product Status: Active
