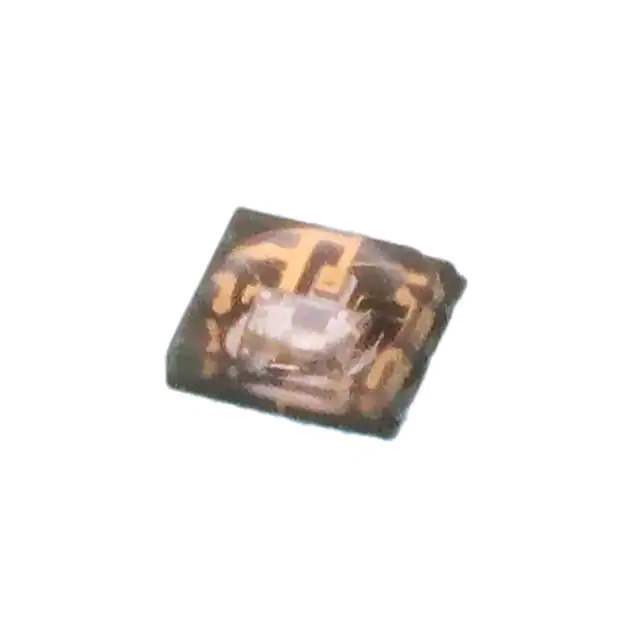

AEDR-8300-1P0 Real Image
Same model may have multiple batches, images only for reference.

AEDR-8300-1P0

Part No AEDR-8300-1P0
Manufacturer Broadcom Limited
Catalog Optical Sensors - Reflective - Logic Output
Description SENSOR OPT REFLECTIVE 2MM 6SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Reflective - Logic Output
Mfr Broadcom Limited
Series AEDR
Package Tape & Reel
Product Status Active
Sensing Distance 0.079" (2mm)
Sensing Method Reflective
Sensing Object Codewheel/Codestrip
Mounting Type Surface Mount
Current - Supply 2.2 mA
Voltage - Supply 4.5V ~ 5.5V
Package / Case 6-SMD Module
Features Compact Model
Base Product Number AEDR-8300
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.20.0000
Win Source Part Number 847230-AEDR-8300-1P0
Ultra Librarian 3D Model Ultra Librarian AEDR-8300-1P0 CAD Model

Description

The AEDR-8300-1P0 is a compact model optical sensor with a logic output.

  • Product Name: AEDR-8300-1P0
  • Output Type: Logic
  • Sensing Type: Reflective
  • Sensing Distance: 0.079 inches (2mm)
  • Sensing Object: Codewheel or Codestrip
  • Voltage Supply: 4.5V to 5.5V
  • Current Supply: 2.2mA
  • Package/Case: 6-SMD Module
  • Mounting Type: Surface Mount
  • Series: AEDR
  • Manufacturer: Broadcom Limited
  • Package: Tape & Reel
  • Standard Package: 1,000 pieces
  • ECCN: EAR99
  • MSL Level: 3 (168 hours)
  • HTSUS Code: 8543.20.0000
