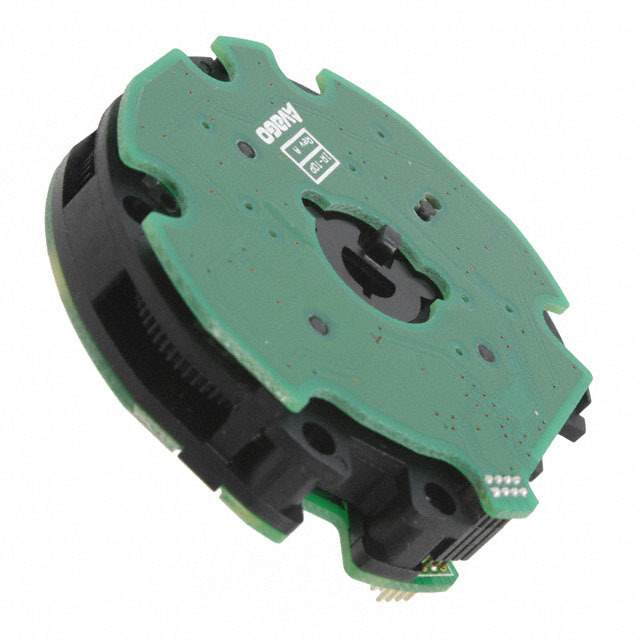

AEAT-84AD-LBSF0 Real Image
Same model may have multiple batches, images only for reference.

AEAT-84AD-LBSF0

Part No AEAT-84AD-LBSF0
Manufacturer Broadcom Limited
Catalog Encoders
Description IC ENCODER 14BIT MULTI TURN HT / Optical Encoder Rotary Absolute Hollow Straight Digital Square Wave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series AEAT-84AD
Encoder Type Optical
Output Type Gray Code (Absolute)
Pulses per Revolution 16384
Operating Supply Voltage 5V
Actuator Type 10mm Geared Center
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Pin Strip
Win Source Part Number 768293-AEAT-84AD-LBSF0
Popularity Medium
Supply and Demand Status Limited
Quantity per package 32
Family Name AEAT-84AD
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AEAT-84AD-LBSF0 CAD Model

Description

The Broadcom Limited 768293-AEAT-84AD-LBSF0 is an electronic component that belongs to the sensors and transducers category.

  • Series: AEAT-84AD
  • Mounting: Chassis Mount
  • Output Type: Gray Code (Absolute)
  • Actuator Type: 10mm Geared Center
  • Encoder Type: Optical
  • Pulses per Revolution: 16384
  • Rotational Life: Not Specified
  • Supply and Demand Status: Limited
  • Popularity: Medium
  • Origin: Malaysia
  • Estimated EOL Date: 2025
