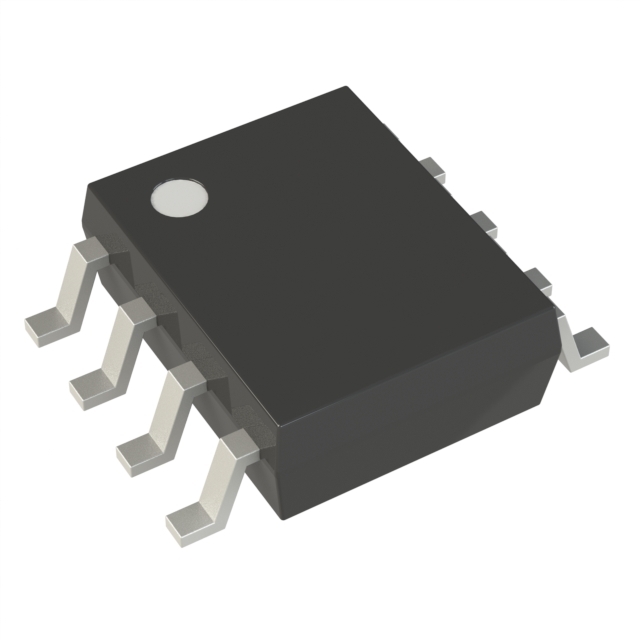

ACPL-W61L-060E Broadcom Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACPL-W61L-060E

Part No ACPL-W61L-060E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV PUSH PULL 6SO STRETC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10 mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise / Fall Time (Typ) 12ns, 12ns
Voltage - Forward (Vf) (Typ) 1.3V
Current - DC Forward (If) (Max) 8mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Case / Package 6-SOIC (0.180", 4.58mm Width)
Supplier Device Package 6-SO Stretched
Package Tube
Supply and Demand Status Limited
Win Source Part Number 1502483-ACPL-W61L-060E
Ultra Librarian 3D Model Ultra Librarian ACPL-W61L-060E CAD Model
