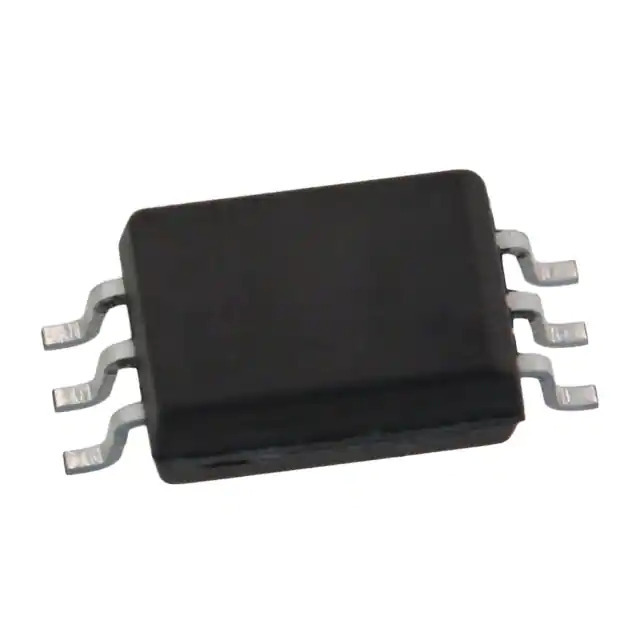

ACPL-W611-000E

Name: ACPL-W611-000E
Brand: Broadcom Limited
SKU: 1357211
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-W611-000E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 5KV OPEN COLLECTOR 6SO / Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 5000Vrms 1 Channel 10kV/µs CMTI 6-SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Logic Output Optoisolators
Mfr	Broadcom Limited
Series	-
Package	Tube
Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	24ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Temperature Range - Operating	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO
Base Product Number	ACPL-W611
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1357211-ACPL-W611-000E
Ultra Librarian 3D Model	Ultra Librarian ACPL-W611-000E CAD Model
