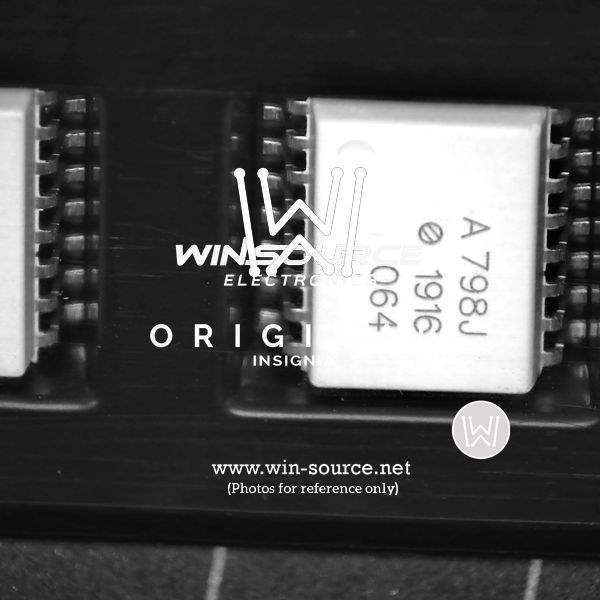

ACPL-798J-500E

Name: ACPL-798J-500E
Brand: Broadcom Limited
SKU: 766943
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-798J-500E
Manufacturer	Broadcom Limited
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	IC OP AMP ISOLATION 16SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Broadcom Limited
Packaging	Reel package
Amplifier Type	Isolation
Number of Circuits	1
Current - Input Bias	500nA
Voltage - Input Offset	600μV
Operating Supply Current	15.5mA
Output Current per Channel	3.5mA
Dual Supply Voltage (±)	4.5 V ~ 5.5 V
Operating Temperature Range	-40°C ~ 105°C
Mounting	SMD
Package	16-SOIC (0.295", 7.50mm Width)
Manufacturer Package	16-SOIC
Win Source Part Number	766943-ACPL-798J-500E
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	850
Family Name	ACPL-798J
ECCN	EAR99
Country of Origin	Thailand
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian ACPL-798J-500E CAD Model

Description

The Broadcom Limited 766943-ACPL-798J-500E is an integrated circuit (IC) that is perfect for use in isolation applications.

Packaging: Reel Package
Package: 16-SOIC (0.295", 7.50mm Width)
Number of Circuits: 1
Operating Supply Current: 15.5mA
Family Name: ACPL-798J
