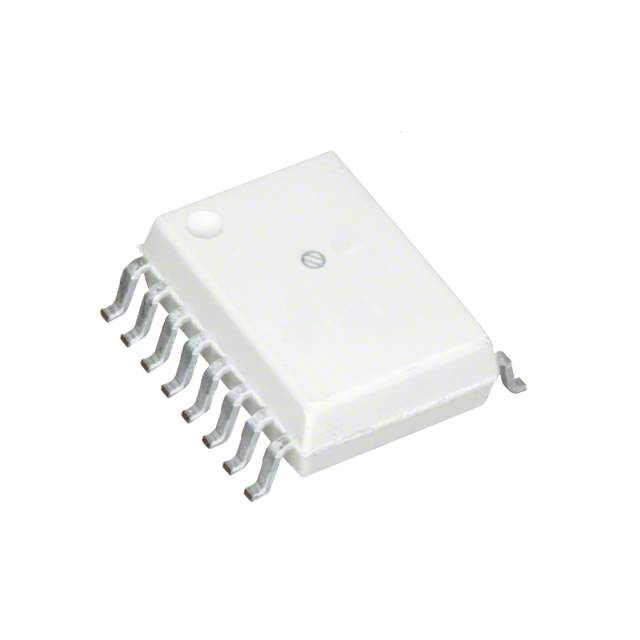

ACPL-798J-000E Real Image
Same model may have multiple batches, images only for reference.

ACPL-798J-000E

Part No ACPL-798J-000E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OP AMP ISOLATION 16SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Amplifier Type Isolation
Number of Circuits 1
Current - Input Bias 500nA
Voltage - Input Offset 600μV
Operating Supply Current 15.5mA
Channel Output Current 3.5mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Case / Package 16-SOIC
Win Source Part Number 1011705-ACPL-798J-000E
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Multimedia, Audio, Portable Devices, Power Management, Automation & Process Control, Medical
Quantity per package 45
Ultra Librarian 3D Model Ultra Librarian ACPL-798J-000E CAD Model

Description

The Broadcom Limited ACPL-798J-000E is a high-performance isolation amplifier designed for use in multimedia, audio, portable devices, power management, automation and process control, and medical applications.

  • Circuit: Single
  • Mounting Type: SMD (SMT)
  • Amplifier Type: Isolation
  • Input Bias Current: 500nA
  • Input Offset Voltage: 600μV
  • Temperature Range: -40℃ to 105℃
  • Supply Voltage: 4.5V to 5.5V
  • Operating Supply Current: 15.5mA
  • Channel Output Current: 3.5mA
  • Packaging: Tube/Rail
  • Popularity: Medium
  • Supply and Demand Status: Balanced
