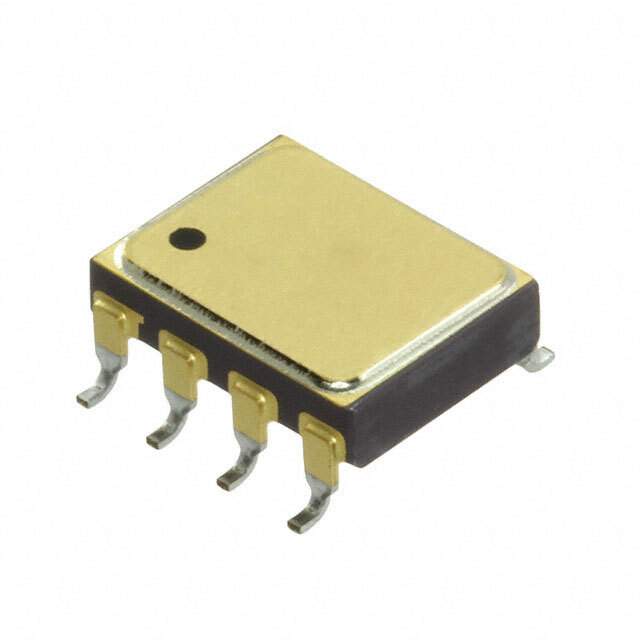

ACPL-5630L-300 Real Image
Same model may have multiple batches, images only for reference.

ACPL-5630L-300

Part No ACPL-5630L-300
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV OPEN COLL 8DIP GW
Datasheet
ACPL-5630L-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001209-ACPL-5630L-300
Manufacturer Broadcom Limited
Category Isolators -Optoisolators -Logic Output Optoisolators
Package Tube
Product Status Active
Base Product Number ACPL-5630
Package / Case 8-CSMD, Gull Wing
Mounting Type Surface Mount
Operating Temperature -55°C ~ 125°C
Voltage - Supply 3V ~ 3.6V
Data Rate 10MBd
Ultra Librarian 3D Model Ultra Librarian ACPL-5630L-300 CAD Model

Description

The ACPL-5630 is a logic output optoisolator manufactured by Broadcom Limited.

  • Category: Isolators
  • Package: Tube
  • Data Rate: 10MBd
  • Voltage Supply: 3V to 3.6V
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Surface Mount
  • Package/Case: 8-CSMD, gull-wing
  • Product Status: Active
