Same model may have multiple batches, images only for reference.

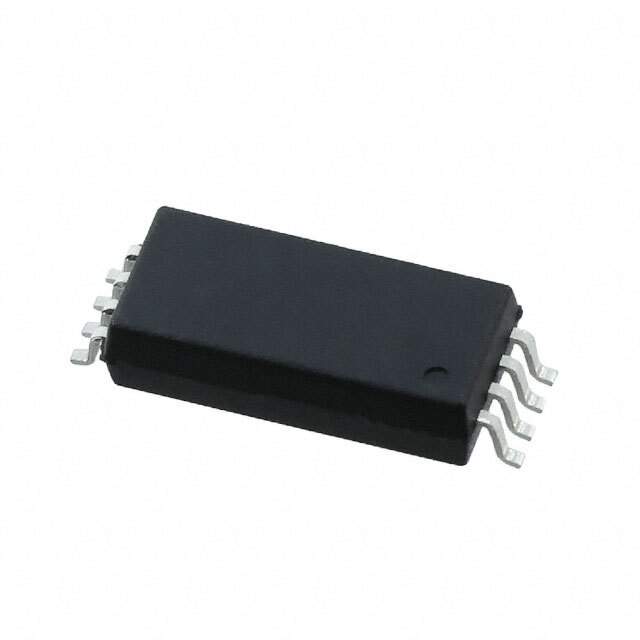

ACNT-H79A-500E Real Image
Same model may have multiple batches, images only for reference.

ACNT-H79A-500E

Part No ACNT-H79A-500E
Manufacturer Broadcom Limited
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP ISOLATION 2 CIRCUIT 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Reel
Amplifier Type Isolation
Number of Circuits 2
Output Type Differential
-3db Bandwidth 200kHz
Current - Input Bias 100nA
Voltage - Input Offset 200μV
Current - Supply 19mA
Current - Output / Channel 11mA
Voltage - Supply, Single/Dual (±) 3V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package 8-SO Stretched
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802735-ACNT-H79A-500E
Ultra Librarian 3D Model Ultra Librarian ACNT-H79A-500E CAD Model

Description

The Broadcom Limited 802735-ACNT-H79A-500E is a differential output type isolation amplifier from Broadcom Limited.

  • Bandwidth: -3db @ 200kHz
  • Current Input Bias: 100nA
  • Voltage Input Offset: 200μV
  • Voltage - Supply Single/Dual (±): 3V to 5.5V
  • Current Supply: 19mA
  • Current Output / Channel: 11mA
  • Package / Case: 8-SO Stretched
  • Applications: Industrial, Consumer Electronics, Fiber Optics
