Same model may have multiple batches, images only for reference.

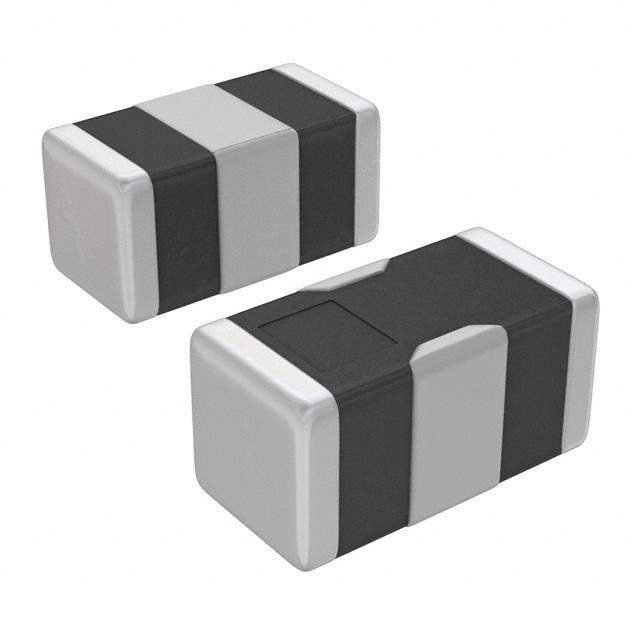

DEA165850LT-1197B2 Real Image
Same model may have multiple batches, images only for reference.

DEA165850LT-1197B2

Part No DEA165850LT-1197B2
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER LOWPASS 5.425GHZ 0603
Datasheet
DEA165850LT-1197B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 5.425GHz Center
Bandwidth 1.05GHz
Filter Type Low Pass
Insertion Loss 0.7dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.035" (0.90mm)
Win Source Part Number 014101-DEA165850LT-1197B2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA165850LT-1197B2 CAD Model

Description

Product Overview

The DEA165850LT-1197B2 is a high-performance electronic component designed for precision applications. Produced with cutting-edge technology, it offers reliability and efficiency essential for advanced electronic projects.

Features and Benefits

  • High-frequency stability
  • Compact design for space-saving applications
  • Low power consumption
  • Robust construction ensuring long-term durability

Applications

  • Telecommunication devices
  • Automotive electronics
  • Industrial control systems
  • High-precision measurement equipment
