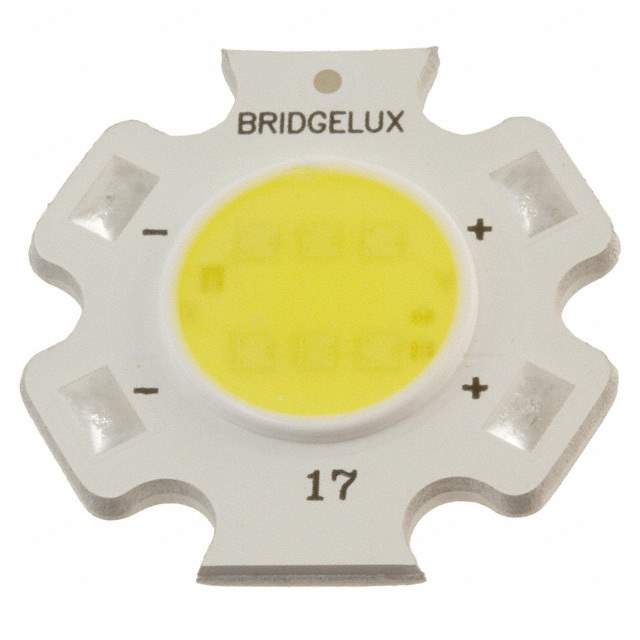

BXRA-40E0810-A-03 Real Image
Same model may have multiple batches, images only for reference.

BXRA-40E0810-A-03

Part No BXRA-40E0810-A-03
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB ES STAR NEU WHT STARBRD / High Power LED Module Light Source is a high performance energy efficient device which can handle high thermal and high driving current
Datasheet
BXRA-40E0810-A-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Bridgelux
Series ES STAR
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Starboard
Flux @ Current/Temperature - Test 1030 lm (Typ)
Current - Test 350mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 27.3V
Lumens/Watt @ Current - Test 108 lm/W
Current - Max 350mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 19.90mm L x 19.90mm W
Height 3.00mm
Lens Type Domed
Win Source Part Number 770701-BXRA-40E0810-A-03
Popularity Medium
Supply and Demand Status Limited
Family Name BXRA-40E0810-A-00
Introduction Date December 04, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BXRA-40E0810-A-03 CAD Model

Description

The Bridgelux 770701-BXRA-40E0810-A-03 electronic component is a part of the ES STAR series.

  • Type: Chip on board (COB)
  • Color: White, neutral
  • Viewing Angle: 120 degrees
  • Forward Voltage: 27.3V
  • Current - Max: 350mA
  • Configuration: Starboard
  • CCT: 4000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Flux @ Current/Temperature - Test: 1030 lm (Typ)
  • Obsolete: Yes
