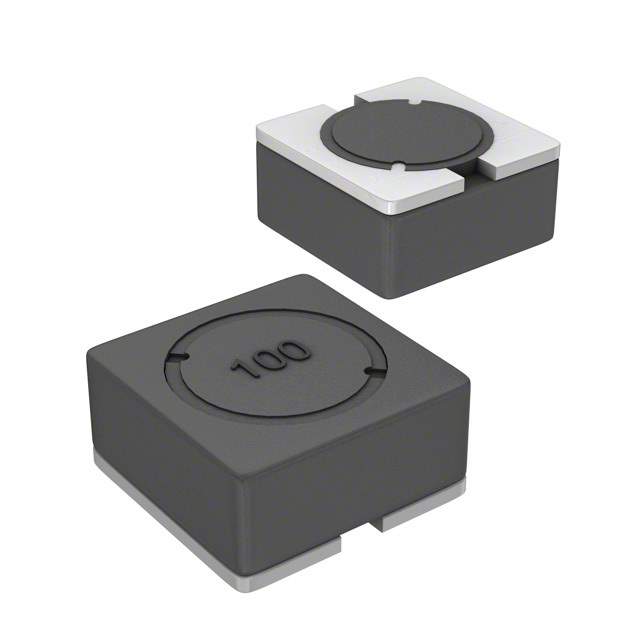

SRR5028-470Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-470Y

Part No SRR5028-470Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 820MA 250MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 820 mA 250mOhm Max Nonstandard
Datasheet
SRR5028-470Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5028
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±30%
Current Rating (Amps) 820 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 7 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR5028470Y,SRR5028-470YCT,SRR5028-470YTR,-SRR5028-470Y-ND,-SRR5028-470Y,-SRR5028-470YTR,-SRR5028-470YCT,SRR5028-470Y-ND
Standard Package 400
Win Source Part Number 1002947-SRR5028-470Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-470Y CAD Model

Description

The Bourns Inc. SRR5028-470Y is a drum core, wirewound inductor with an inductance of 47 µH.

  • Inductance: 47 µH
  • Tolerance: ±30%
  • Q @ Freq: 7 @ 2.52MHz
  • Shielded: Yes
  • Package: Tape and Reel
  • DC Resistance: 250mOhm Max
  • Current Rating: 820 mA
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
