Same model may have multiple batches, images only for reference.

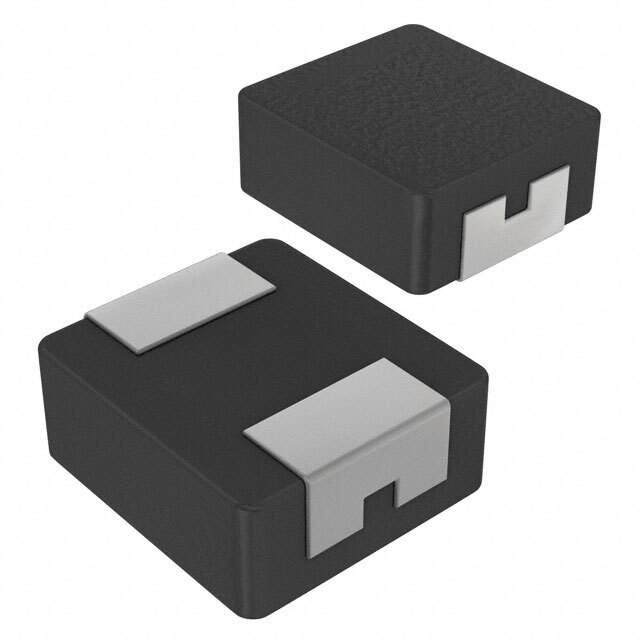

SRP4020TA-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-5R6M

Part No SRP4020TA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 2.2A 125MOHM SMD / 5.6 µH Shielded Drum Core, Wirewound Inductor 2.2 A 125mOhm Max 2-SMD
Datasheet
SRP4020TA-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 125mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020TA-5R6MDKR,SRP4020TA-5R6MTR,SRP4020TA-5R6MCT
Standard Package 3,000
Win Source Part Number 995188-SRP4020TA-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-5R6M CAD Model

Description

The Bourns Inc. SRP4020TA-5R6M is a wirewound drum core fixed inductor with a shielding feature.

  • Manufacturer: Bourns Inc.
  • Type: Wirewound Drum Core Fixed Inductor
  • Shielding: Shielded
  • Inductance: 5.6μH
  • Tolerance: ±20%
  • Supply and Demand Status: Balanced
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 150°C
