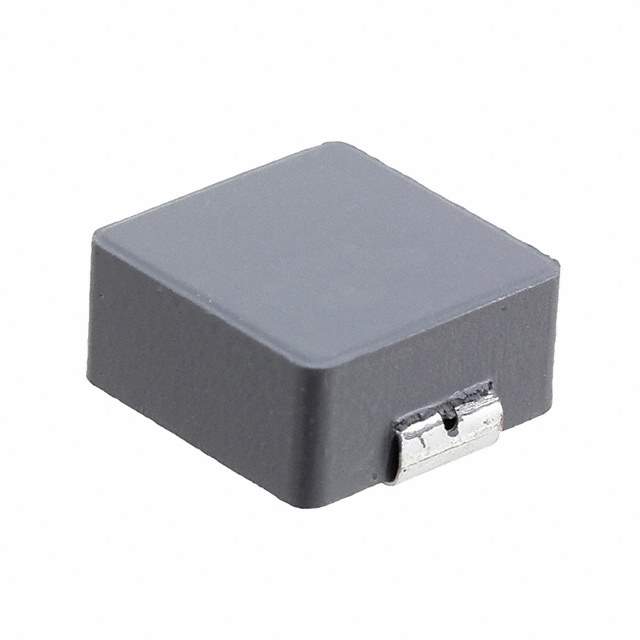

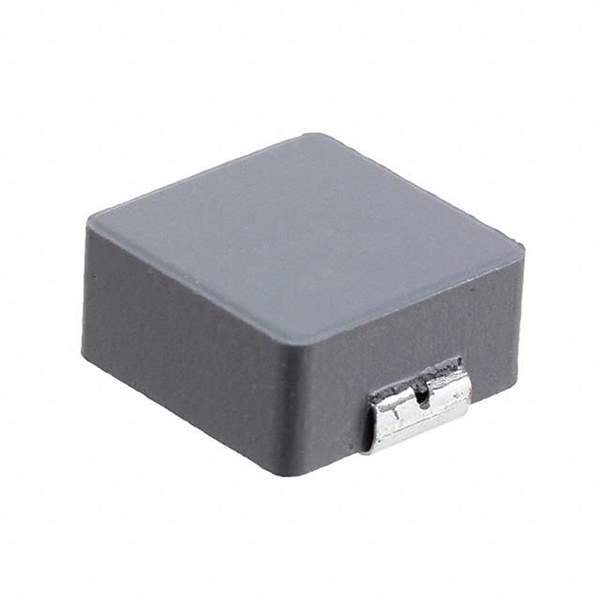

The Bourns Inc. SRP1265A-4R7M is an inductor electronic component with an inductance of 4.7μH from Bourns Inc.

• Inductance: 4.7μH
• Popularity: medium
• Supply and Demand Status: limited
• Series: SRP1265A
• Packaging: reel
• Type: wirewound
• Operating Temperature: -40°C ~ 150°C
• Package: nonstandard
• Current Rating: 13.5A
• Shielding: shielded
• Tolerance: ±20%
• AEC-Q200 Rated: Yes
• Material - Core: carbonyl powder
• Current - Saturation: 28A
• Q @ Freq: 20 @ 100kHz
• Frequency - Self Resonant: 17MHz
• Test Frequency: 100kHz
• Family Name: SRP1265A
• DC Resistance (DCR): 8.4 mOhm Max
• Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
• Height - Seated (Maximum): 0.252" (6.40mm)
• Introduction Date: May 06, 2014
• ECCN: EAR99
• Country of Origin: China, Taiwan
• Estimated EOL Date: 2030
• Halogen-free: Yes
