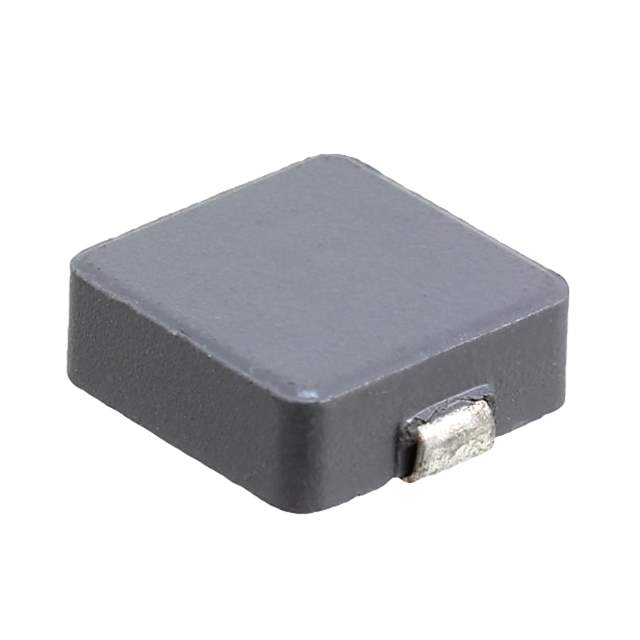

Same model may have multiple batches, images only for reference.

SRP1038A-4R7M

Name: SRP1038A-4R7M
Brand: Bourns Inc.
SKU: 676097
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1038A-4R7M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	Shielded Power Inductors
Datasheet	SRP1038A-4R7M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	SRP1038A
Packaging	Reel - TR
Type	Wirewound
Material - Core	Carbonyl Powder
Inductance	4.7μH
Tolerance	±20%
Current Rating	10A
Current - Saturation	17A
Shielding	Shielded
DC Resistance (DCR)	15.5 mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	16MHz
Ratings	AEC-Q200
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Maximum)	0.157" (4.00mm)
Win Source Part Number	1258785-SRP1038A-4R7M
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Automotive
Family Name	SRP1038A
Introduction Date	April 03, 2014
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian SRP1038A-4R7M CAD Model

Alternative Products

Description

The SRP1038A-4R7M from Bourns Inc. is a wirewound type shielded inductor with an inductance of 4.7μH and a current rating of 10A.

Inductance: 4.7μH
Current rating: 10A
Tolerance: ±20%
Rated for: AEC-Q200
DC resistance (DCR): 15.5 mOhm Max
Frequency self-resonant: 16MHz
Package: nonstandard
Mounted on: SMD
ECCN: EAR99
Popularity: medium
MSL level: 1 (unlimited)
Estimated EOL date: 2028
Compliant with the: halogen-free standard
HTSUS code: 8504.40.9580
