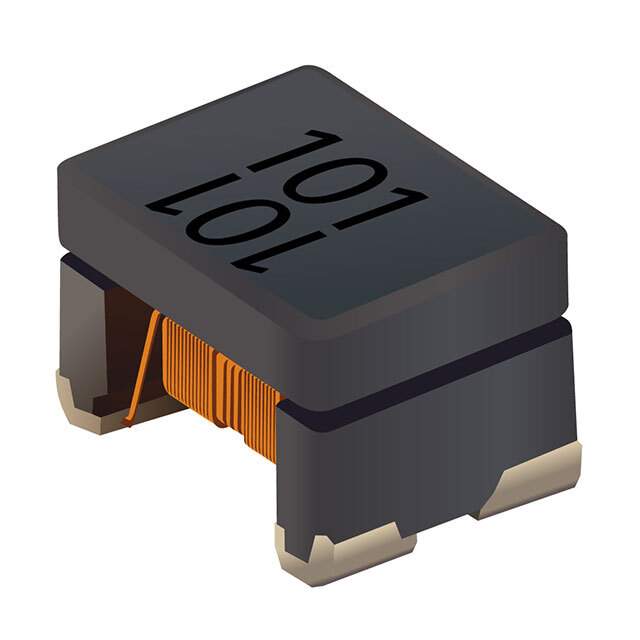

SRF3225TABM-201Y Real Image
Same model may have multiple batches, images only for reference.

SRF3225TABM-201Y

Part No SRF3225TABM-201Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC,3.3X2.5X2.5MM,200UH,80V,70MA / 200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 10 kOhms @ 10 MHz 70mA DCR 5.5Ohm
Datasheet
SRF3225TABM-201Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF3225TABM
Package Tape & Reel
Number of Lines 2
Impedance @ Frequency 10 kOhms @ 10 MHz
Inductance @ Frequency 200 µH @ 100 kHz
Current Rating (Max) 70mA
DC Resistance (DCR) (Max) 5.5Ohm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.118" L x 0.079" W (3.00mm x 2.00mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 118-SRF3225TABM-201YDKR,118-SRF3225TABM-201YCT,118-SRF3225TABM-201YTR
Standard Package 2,000
Win Source Part Number 984728-SRF3225TABM-201Y
Ultra Librarian 3D Model Ultra Librarian SRF3225TABM-201Y CAD Model

Description

The Bourns Inc. SRF3225TABM-201Y is a common mode choke filter with a package of tape and reel.

  • Package: Tape and Reel
  • Voltage: 80V DC
  • Current: 70mA (Max)
  • Series: SRF3225TABM
  • AEC-Q200: Yes
  • Mounting: SMD (SMT)
  • Height: 0.098" (2.50mm)
  • Lines: 2
  • Impedance @ Frequency: 10 kOhms @ 10 MHz
  • Inductance @ Frequency: 200 µH @ 100 kHz
  • DC Resistance (DCR) (Max): 5.5Ohm
  • Package/Case: Horizontal with 4 PC pad
  • Temperature Range: -40°C ~ 125°C
