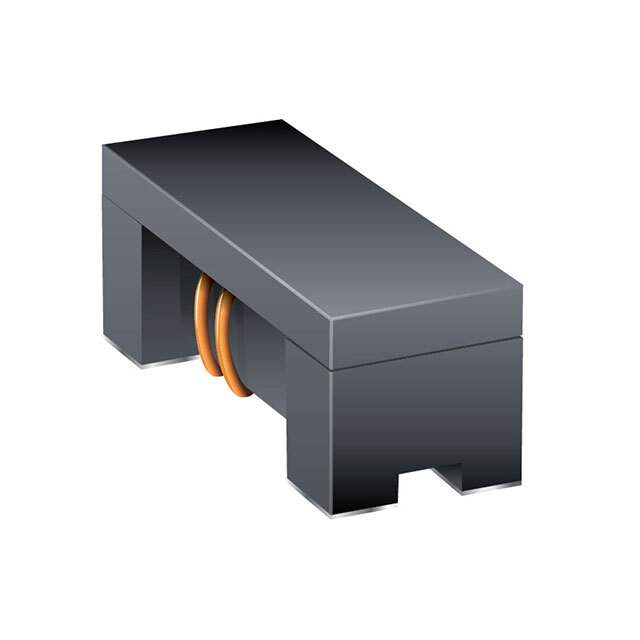

SRF2012-201Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012-201Y

Part No SRF2012-201Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012
Package Tape & Reel (TR)
Product Status Obsolete
Number of Lines 2
Impedance @ Frequency 200 Ohms @ 100 MHz
Current Rating (Max) 330mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.057" (1.45mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277144-SRF2012-201Y
Ultra Librarian 3D Model Ultra Librarian SRF2012-201Y CAD Model

Description

The Bourns Inc. SRF2012-201Y is a common mode choke with a current rating of 330mA and a voltage rating of 50V.

  • Impedance: 200 Ohms @ 100 MHz
  • DC Resistance: 350mOhm
  • Mounting: SMD (SMT) mounting
  • Package Size: 0.081" L x 0.049" W (2.05mm x 1.25mm)
  • Height: 0.057" (1.45mm)
  • Standard Package: 2,000 units
  • ECCN: EAR99
  • Temperature Range: -55°C to 125°C
  • Status: This product is obsolete.
