Same model may have multiple batches, images only for reference.

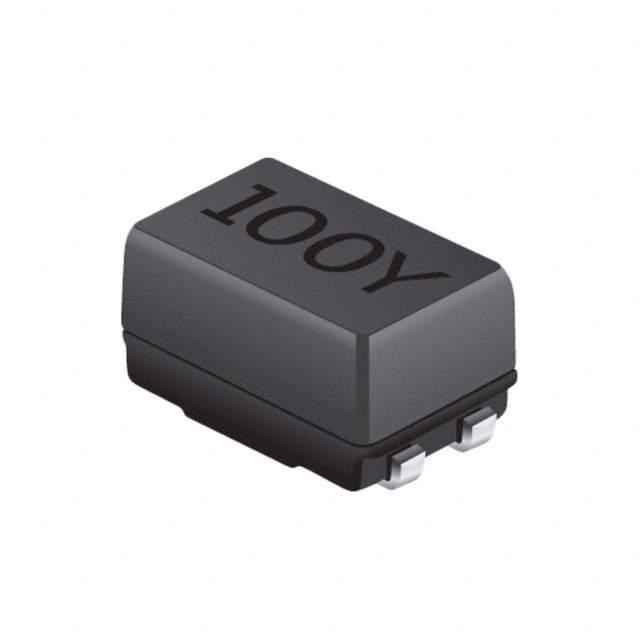

SRF0905A-102Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905A-102Y

Part No SRF0905A-102Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 1MH 800MA 2LN SMD AEC-Q200
Datasheet
SRF0905A-102Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 33 Weeks
Features 1 2 Line Common Mode Choke Surface Mount 800mA DCR 310mOhm
Manufacturer Bourns Inc.
Series SRF0905A
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
Family Name SRF0905A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRF0905A-102YDKR, SRF0905A-102YCT, SRF0905A-102YTR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897363-SRF0905A-102Y
Ultra Librarian 3D Model Ultra Librarian SRF0905A-102Y CAD Model

Description

The Bourns Inc. SRF0905A-102Y is a 2 line common mode choke with a surface mount mounting style.

  • Current Rating: 800mA
  • DCR: 310mOhm
  • Package: reel of 1000
  • Package: horizontal, 4 PC pad
  • Operating Temperature Range: -40°C to 105°C
  • Series: SRF0905A
  • Category: filters
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
  • Supply and Demand Status: balanced
  • Estimated Production Lead Time: 33 weeks
  • REACH Status: unaffected
