Same model may have multiple batches, images only for reference.

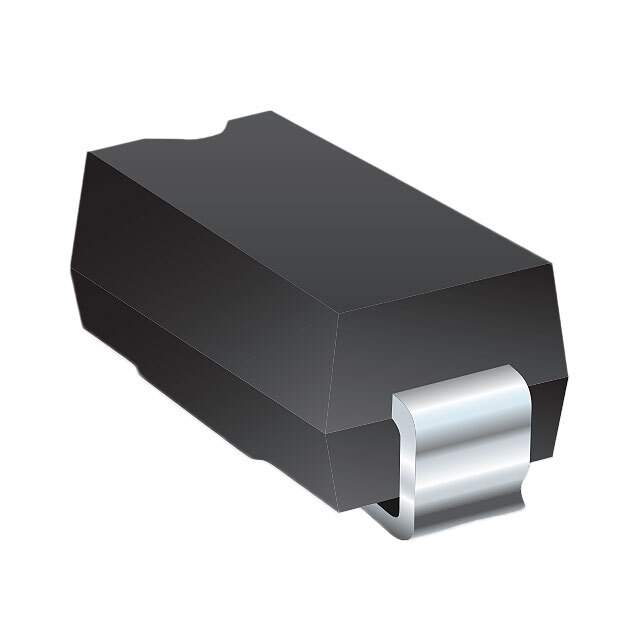

SMBJ7.5CA-Q Real Image
Same model may have multiple batches, images only for reference.

SMBJ7.5CA-Q

Part No SMBJ7.5CA-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 7.5VWM 12.9VC DO214AA / 12.9V Clamp 46.6A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Datasheet
SMBJ7.5CA-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SMBJ-Q
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7.5V
Voltage - Breakdown (Min) 8.33V
Voltage - Clamping (Max) @ Ipp 12.9V
Current - Peak Pulse (10/1000µs) 46.6A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive, Telecom
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
Supplier Device Package SMB (DO-214AA)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 118-SMBJ7.5CA-QTR,118-SMBJ7.5CA-QDKR,118-SMBJ7.5CA-QCT
Standard Package 3,000
Win Source Part Number 1094192-SMBJ7.5CA-Q
Ultra Librarian 3D Model Ultra Librarian SMBJ7.5CA-Q CAD Model

Description

The SMBJ7.5CA-Q is a high-quality electronic component that is designed to provide reliable and stable performance. This component is manufactured by Bourns Inc.

  • Category: TVS - Diodes
  • Applications: Automotive and Telecom
